Pressure Filtration System - 6 x 28

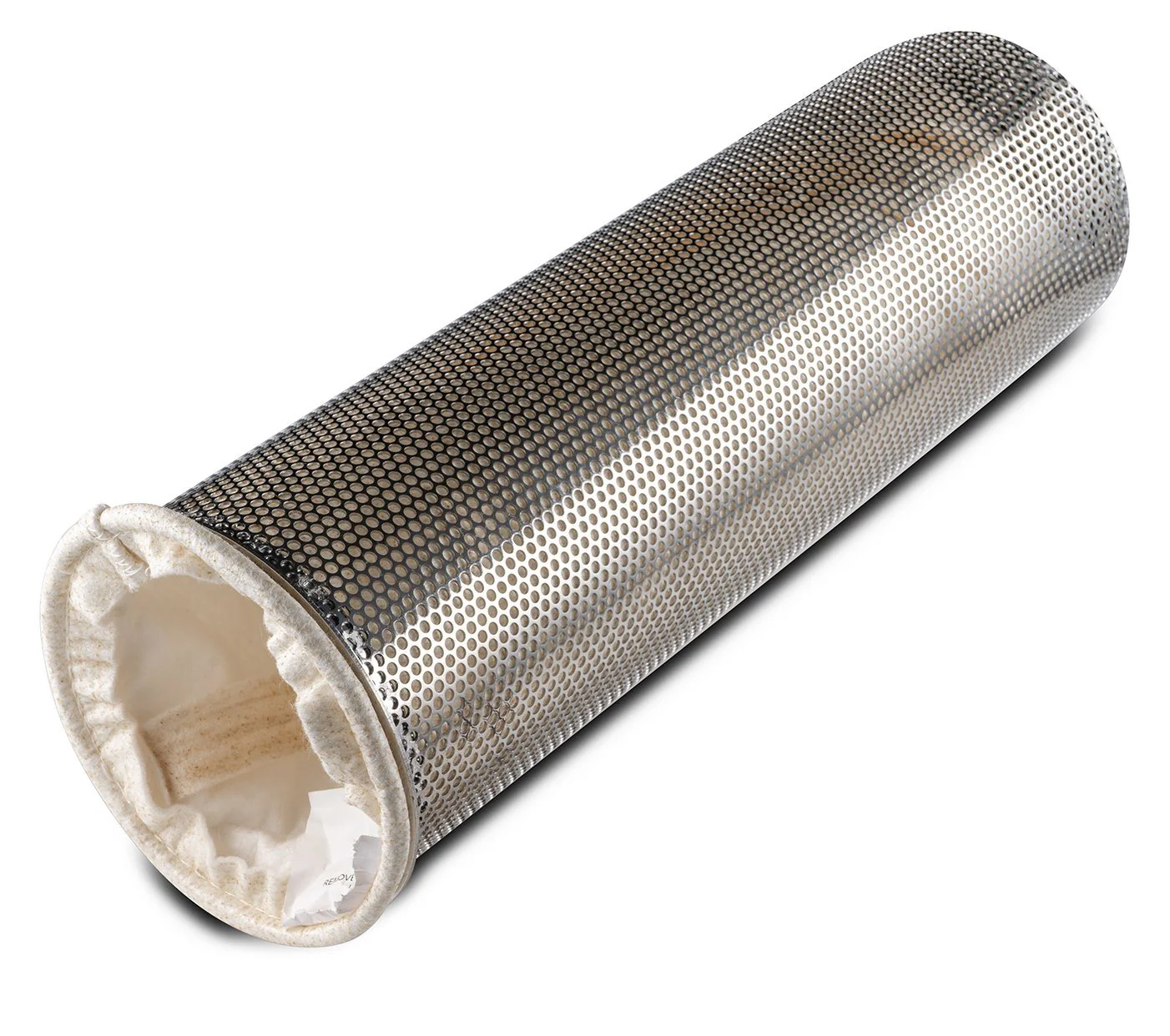

This filter system is designed for high flow rates to filter unwanted precipitates from your oleoresin. The housing provides full enclosure of your filter bags, which are fully supported by the strainer basket within the housing to prevent blowouts. Pressure and high flow rates may be applied to get the fastest flow through filter bags. Using the housing allows full exhaustion of a bag prior to changing it without the sacrifice in filtering time.

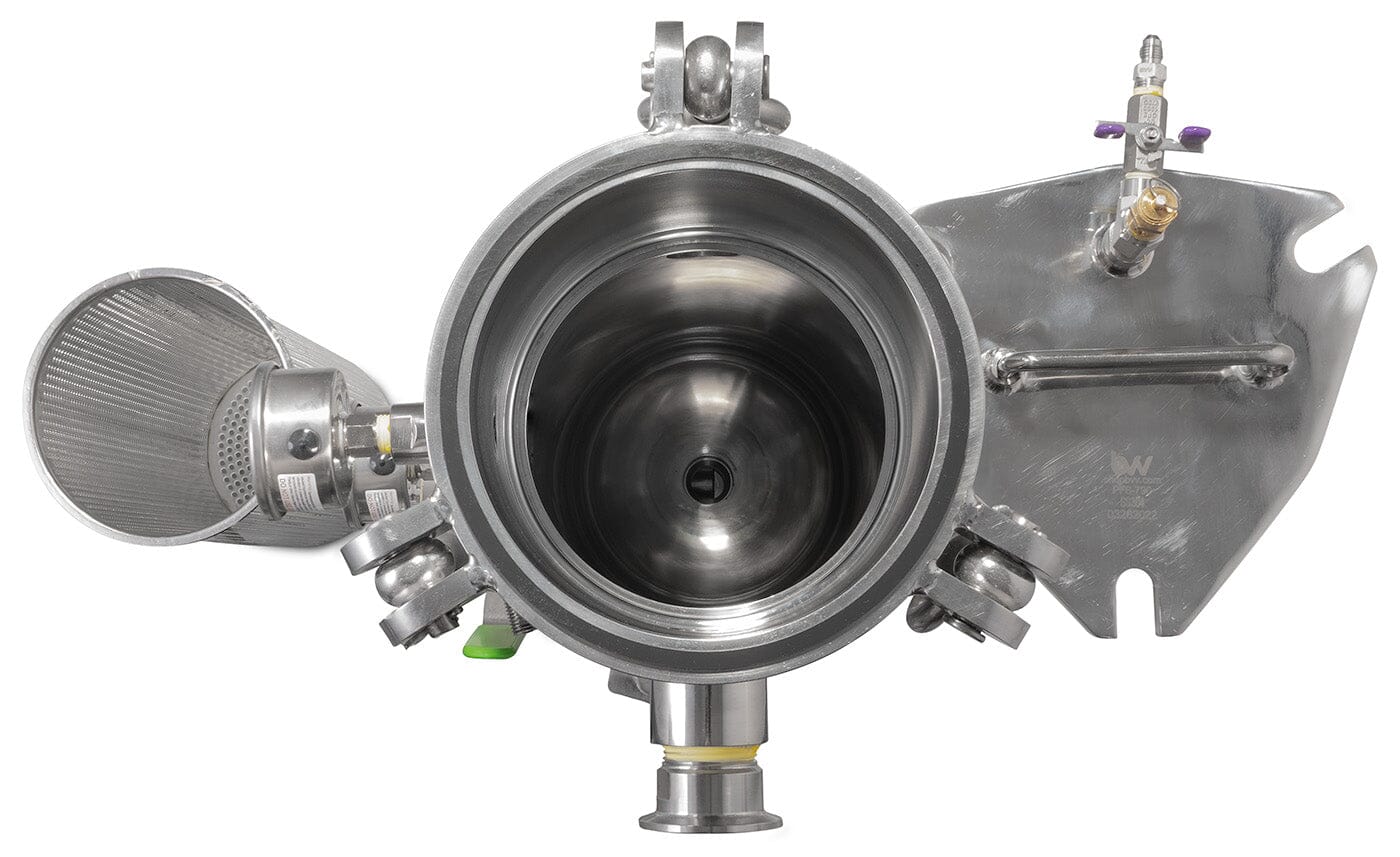

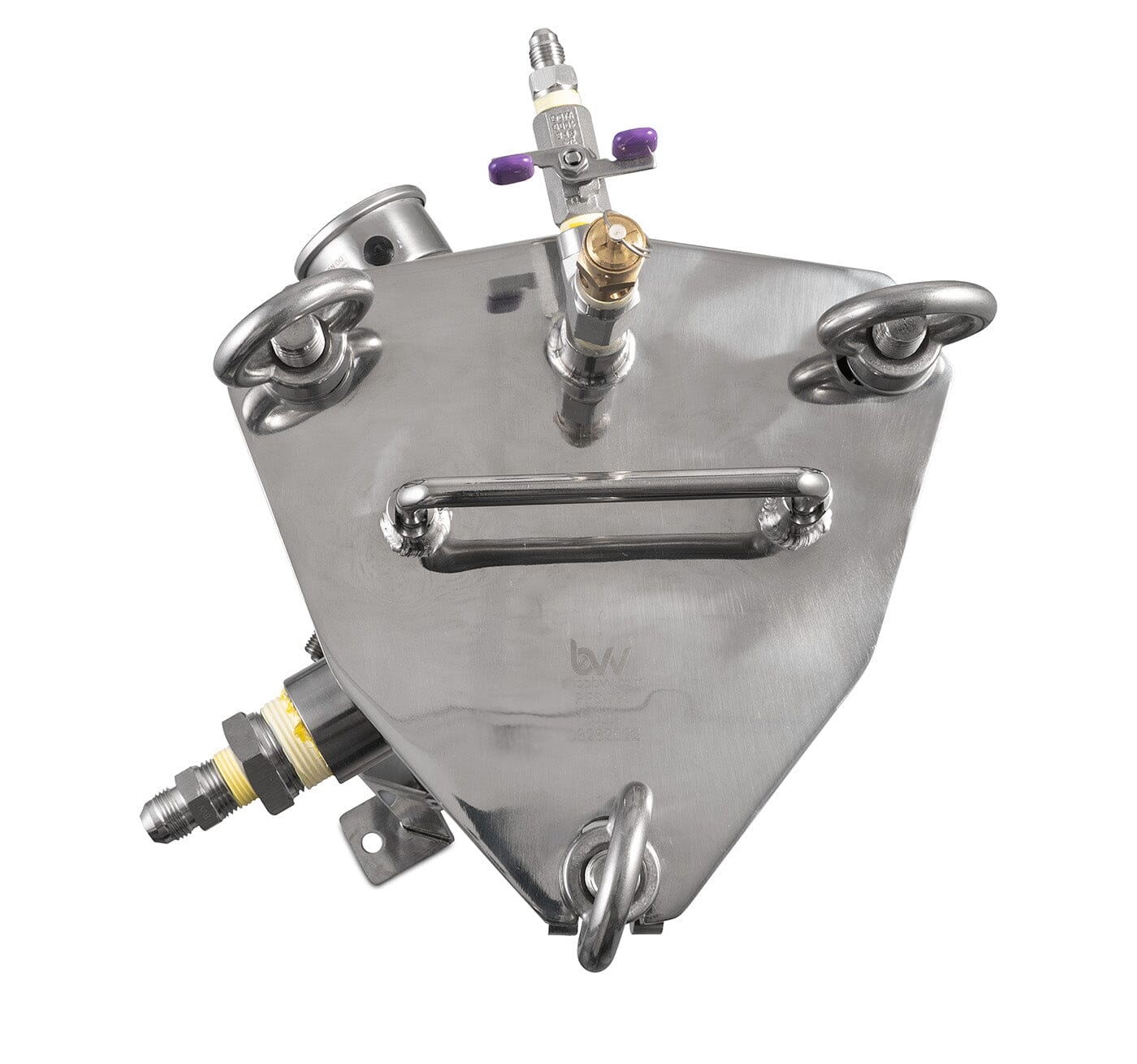

These filter bag housings use an eye-bolt clamp style to allow for high pressure without leakage, while still maintaining an easy to remove cover. When one filter bag gets filled, it can easily be swapped out by removing the lid while not under pressure and pulling the old bag out. The main seal on the housing is Buna-n rubber.

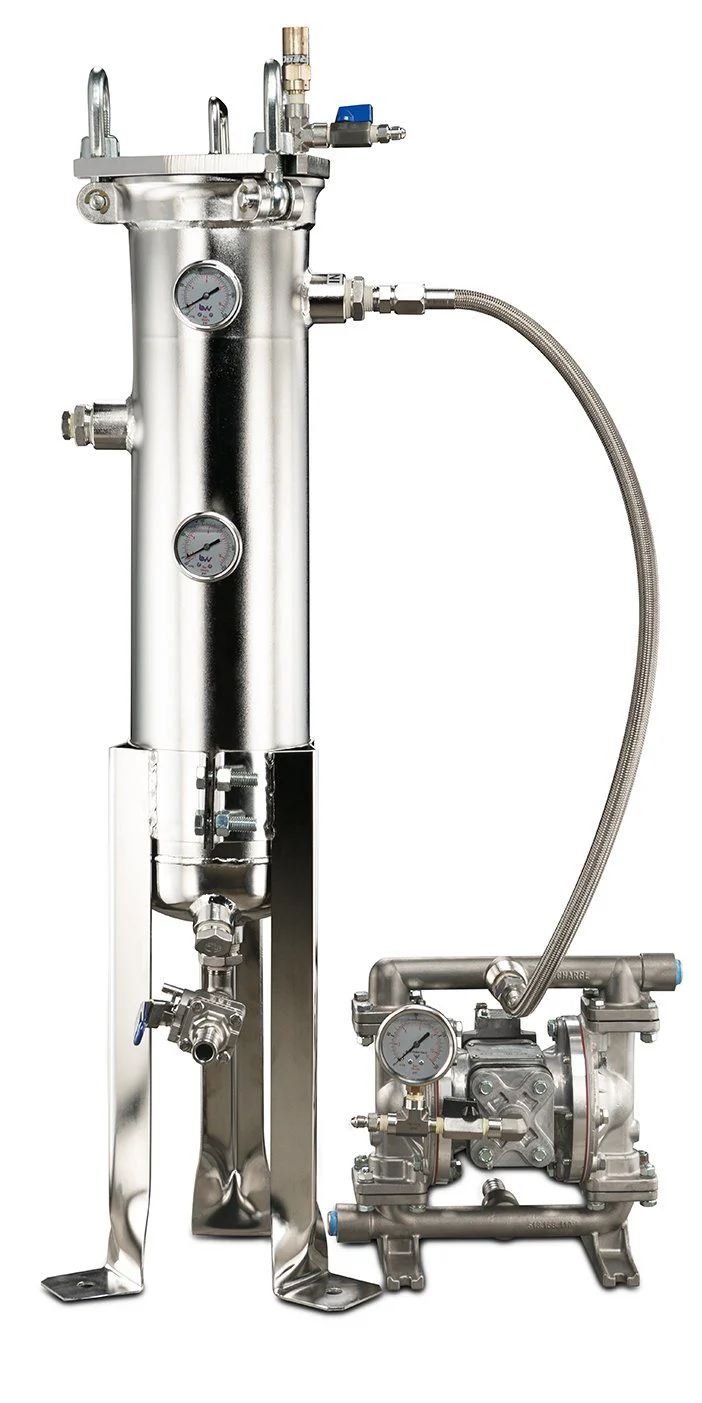

The liquid pump is of 316 Stainless Steel Construction with PTFE seals and runs on compressed air or nitrogen.

Built options Include:

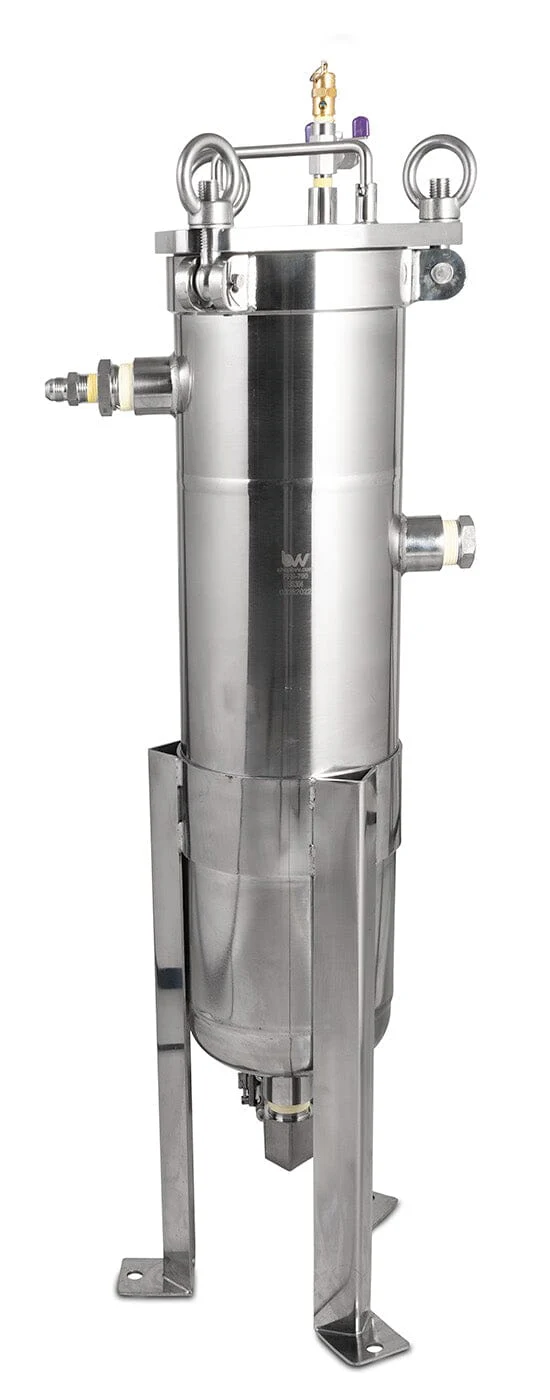

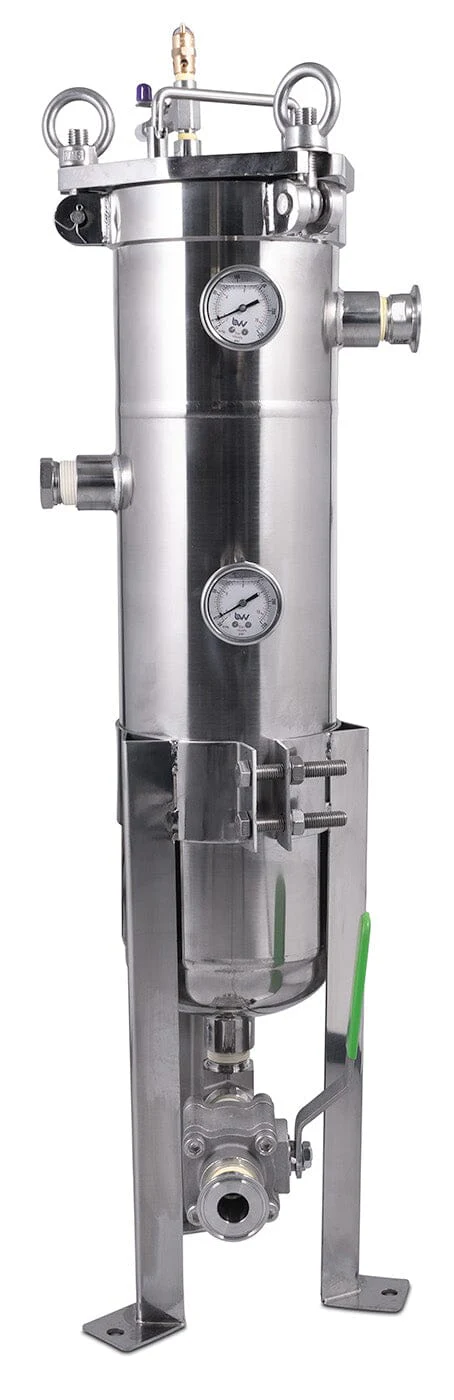

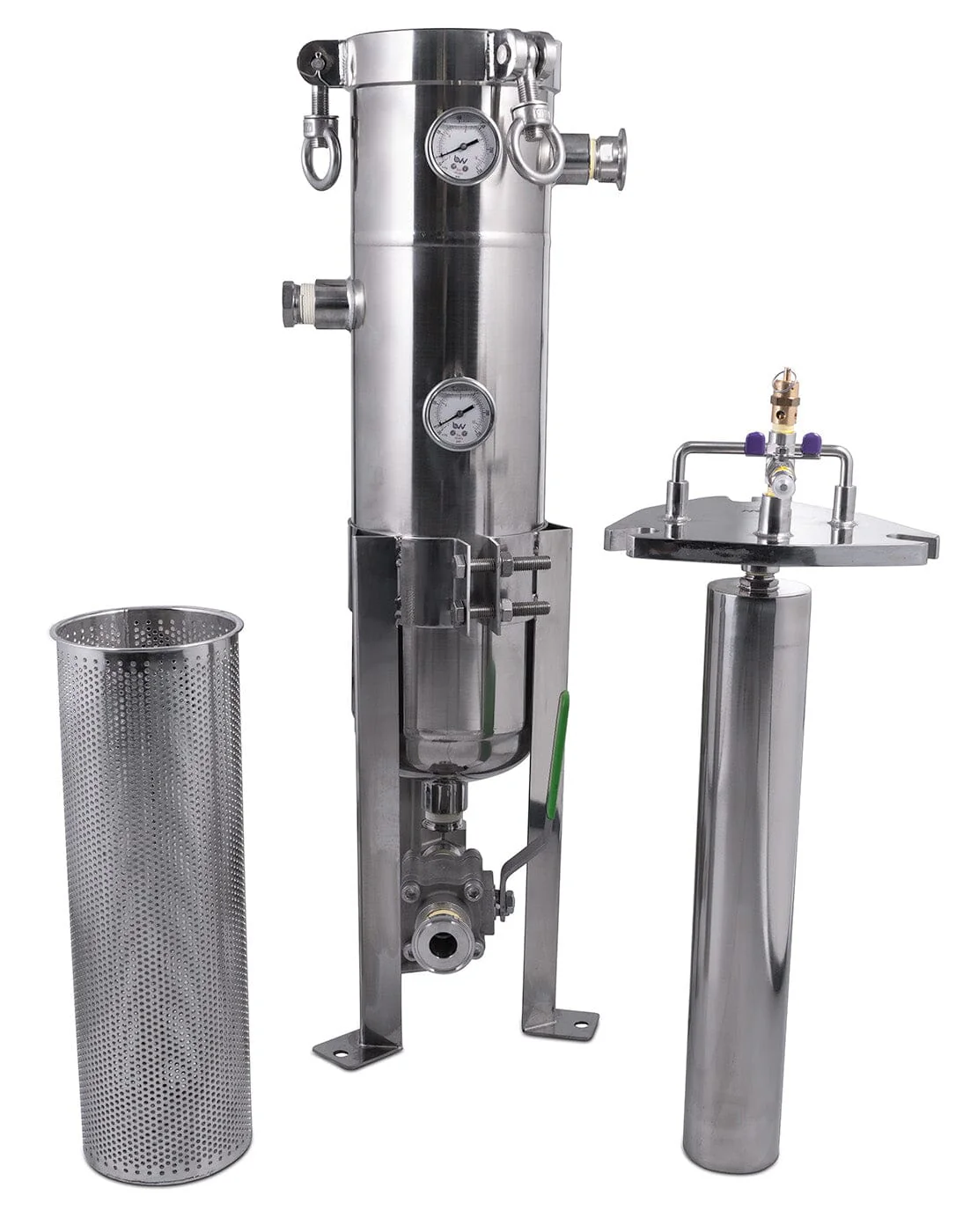

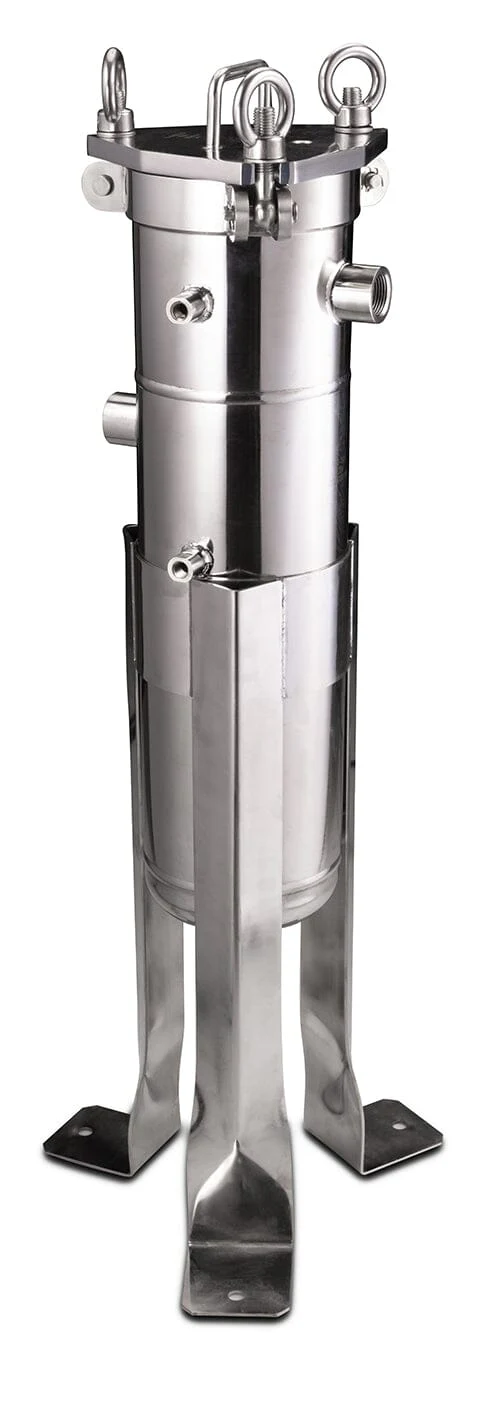

• 1x 304 Stainless Steel Filter Bag Housing

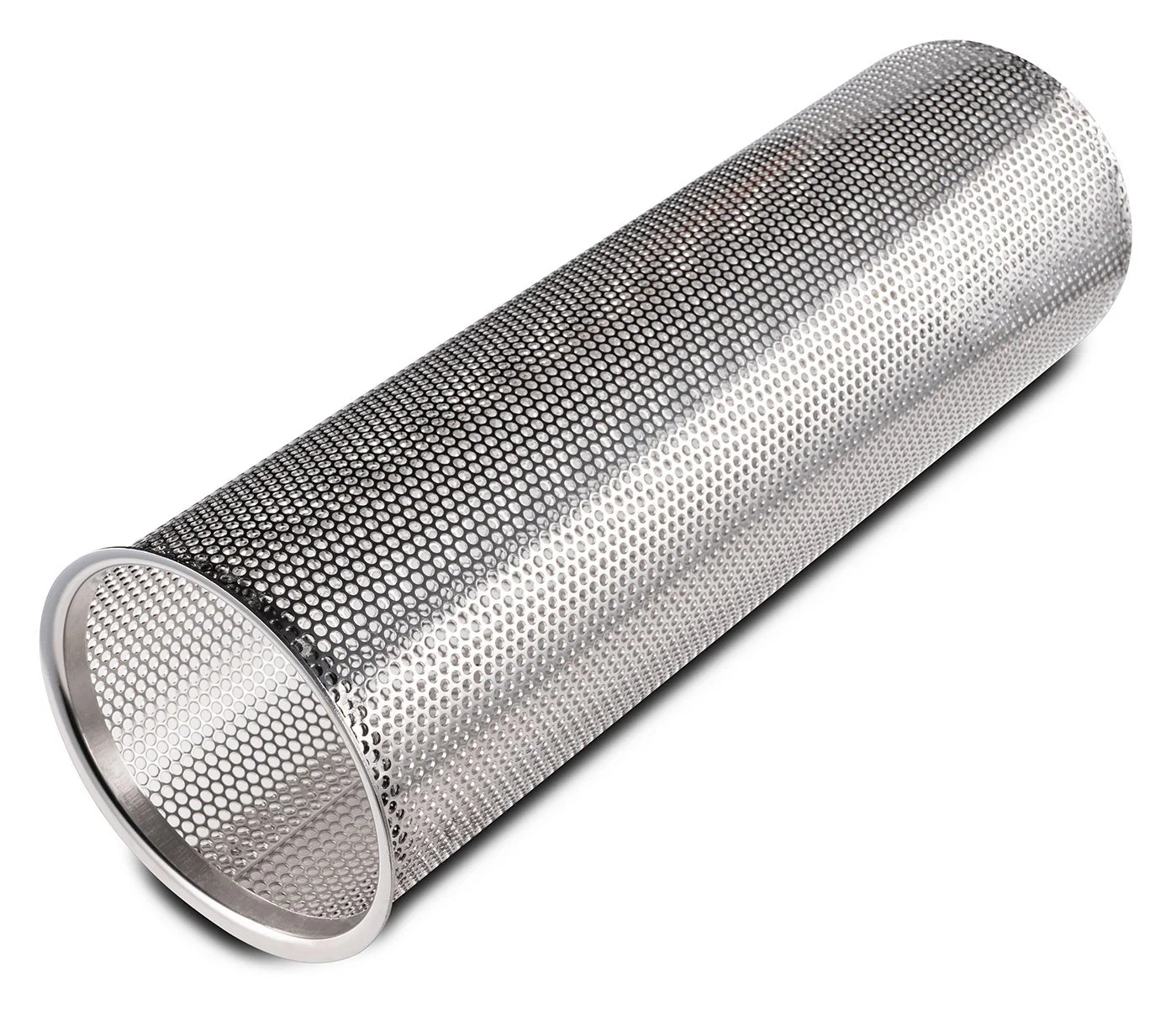

• 1x 304 Stainless Steel Basket
• 1x 304 Stainless Steel Displacement Cylinder

With Pump options Include:

• 1x 304 Stainless Steel Filter Bag Housing
• 1x 304 Stainless Steel Basket
• 1x 304 Stainless Steel Displacement Cylinder
• 1x 316 Stainless Steel Liquid pump

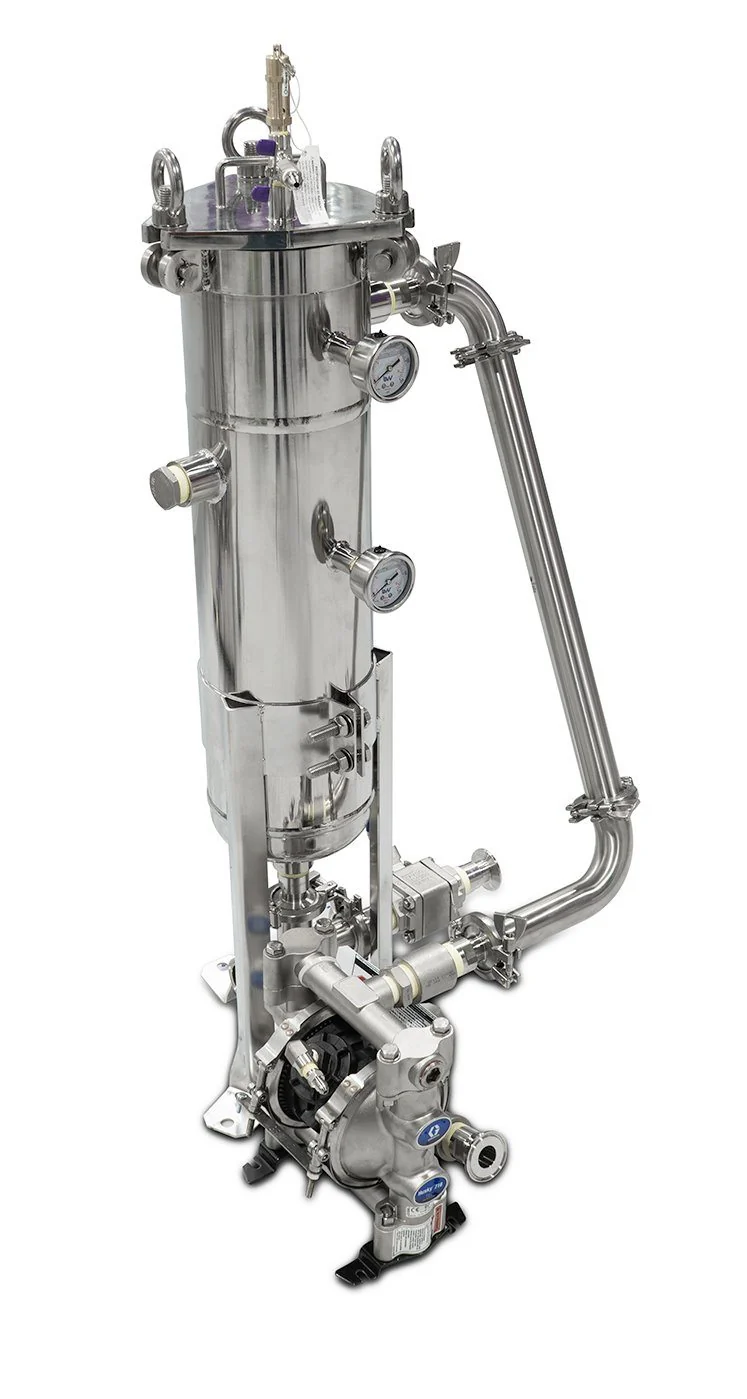

• Connecting hose or hardline tubing

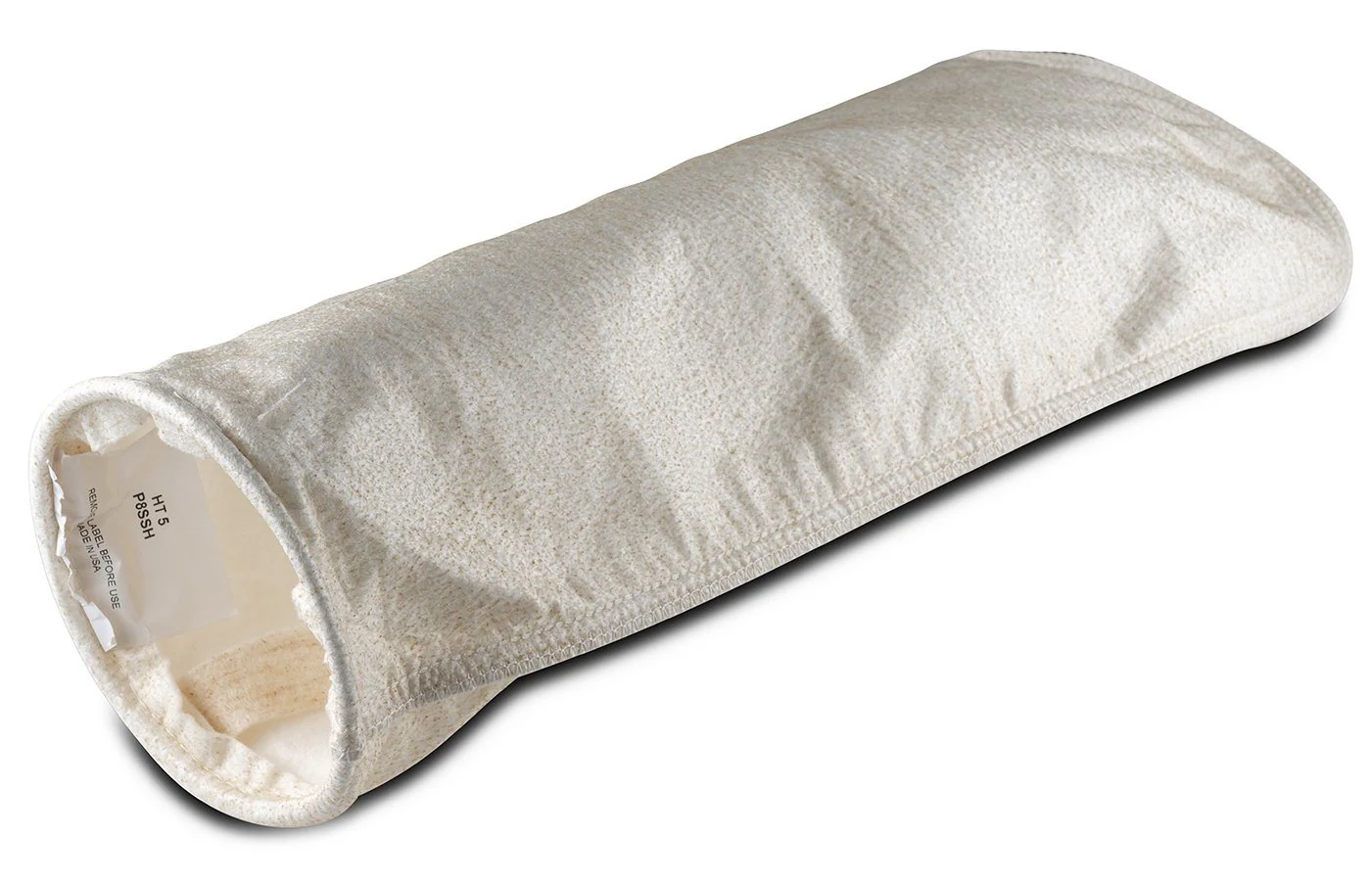

• 4x Nomex Filter Bags (1μm, 5μm, 25μm, and 100μm)



Specifications	PFS-790-15	PFS-790-45
Flow Rate (GPM)	≤15	≤45
Max Pressure (PSI)	100 @28 CFM
Volume (in^3)	790
Working Temperature (°C)	-40 - 100
Air Hose Connection	¼” JIC Flare	½” JIC Flare
Filter Bag Housing Dimensions (LxWxH)	14” x 11” x 41”
Filter Bag Trade Size	#8
Included PVC Hose size ID	¾”	1”



*This unit requires an air compressor for operation (not included)
