Stacking Filter Plate Ring Kit

Stacking Filter Plate Ring KIT

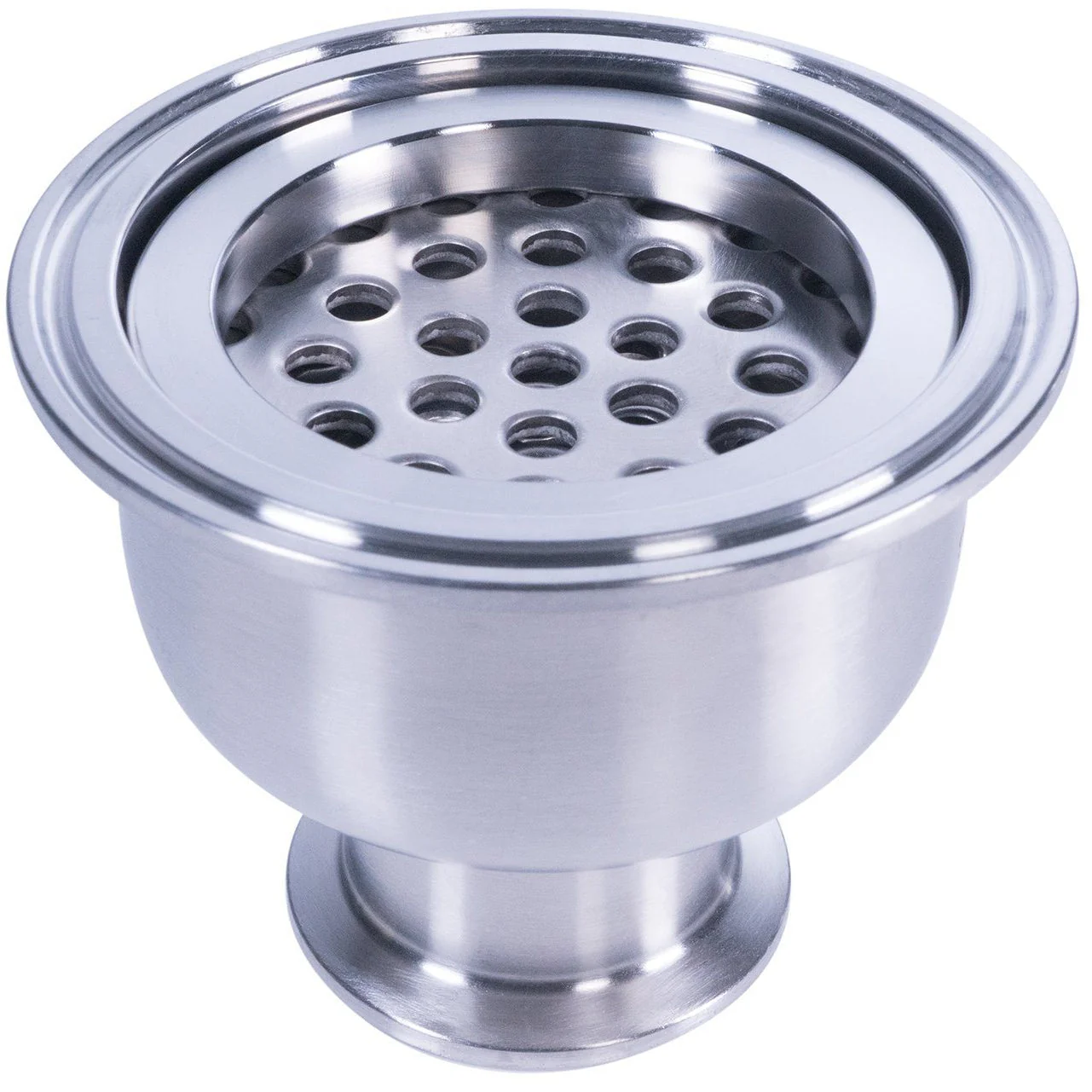

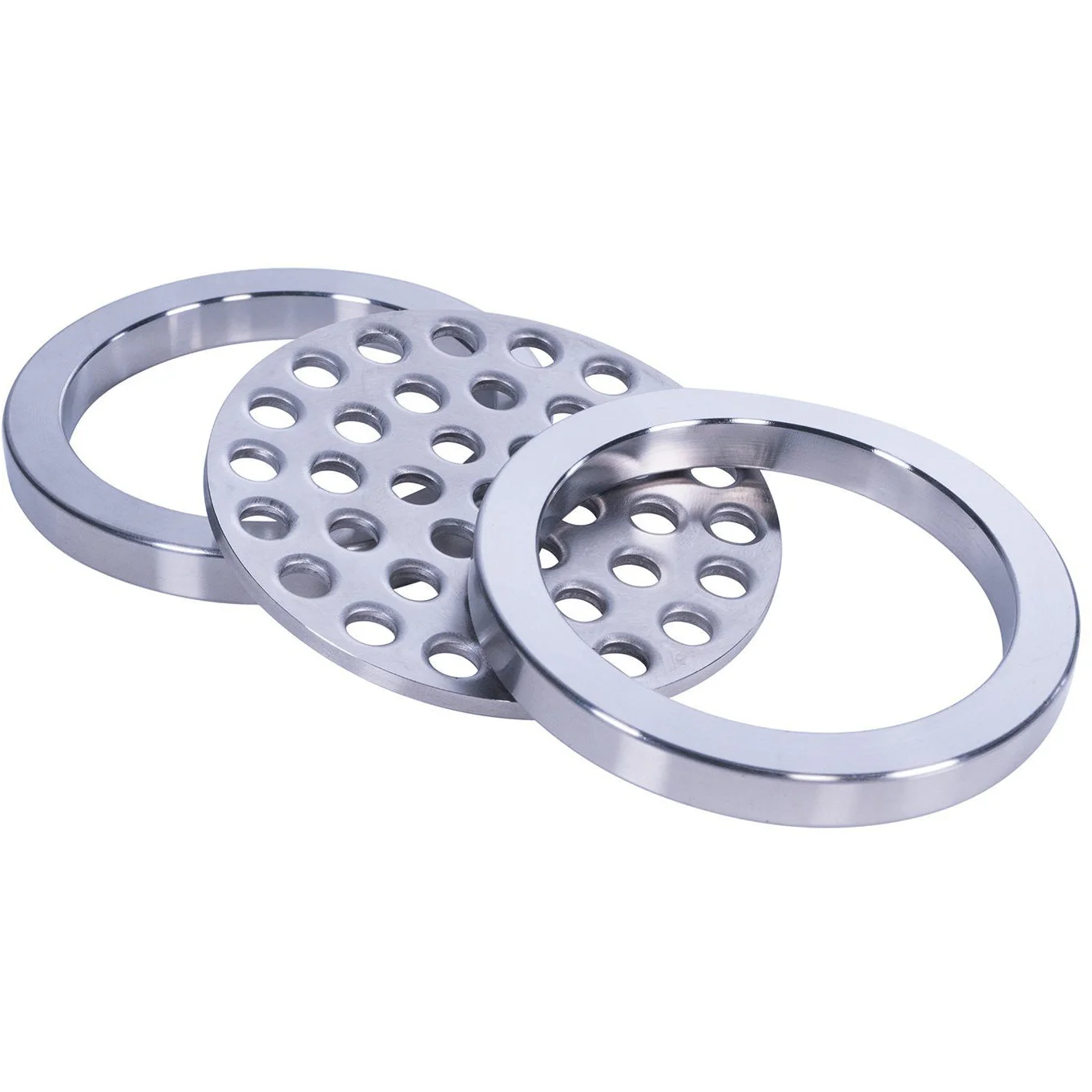

This Stacking Filter Plate and Ring Kit allows the user to stack multiple levels of filtration while having the rigidity of a solid filter plate. These components are made out of 304 polished stainless steel and will fit inside of the corresponding Tri-Clamp/ Tri Clover parts. The stainless steel rings are solid and measure 8mm in thickness and the filter plates measure about 3mm in thickness with 6mm holes.

This Kit Includes:

• 1x Filter Plate

• 2x Drop-in Retaining Rings

Sizes Available:

• 1.5"

• 2"

• 3"

• 4"

• 6"

• 8"

• 10"

• 12"

Specifications
Material	304 Stainless Steel
Ring Thickness	8mm
Plate Thickness	3mm
Plate Hole Size	6mm
