Stainless Tri-Clamp Weldless Bulkhead
Stainless Tri-Clamp Weldless Bulkhead

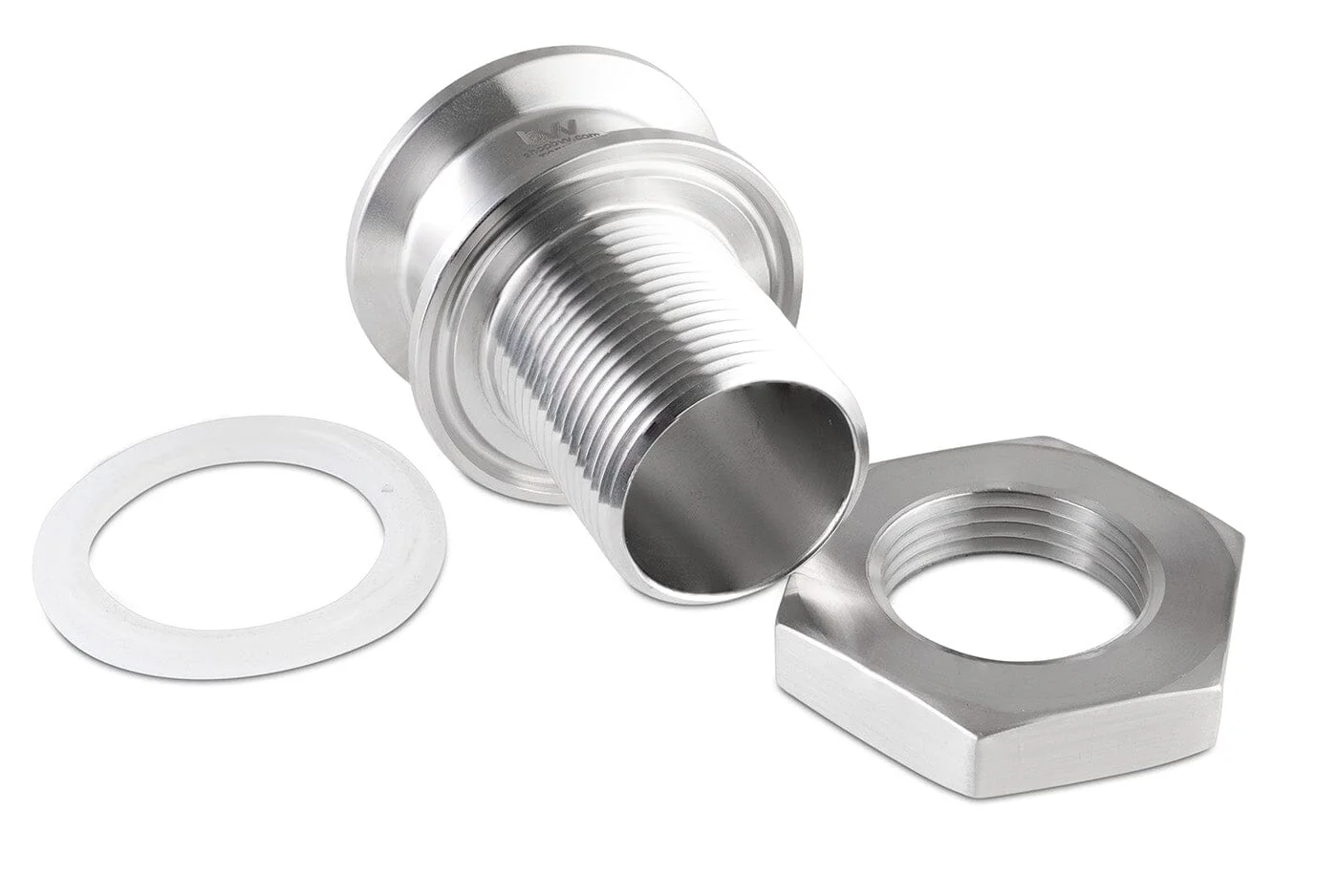

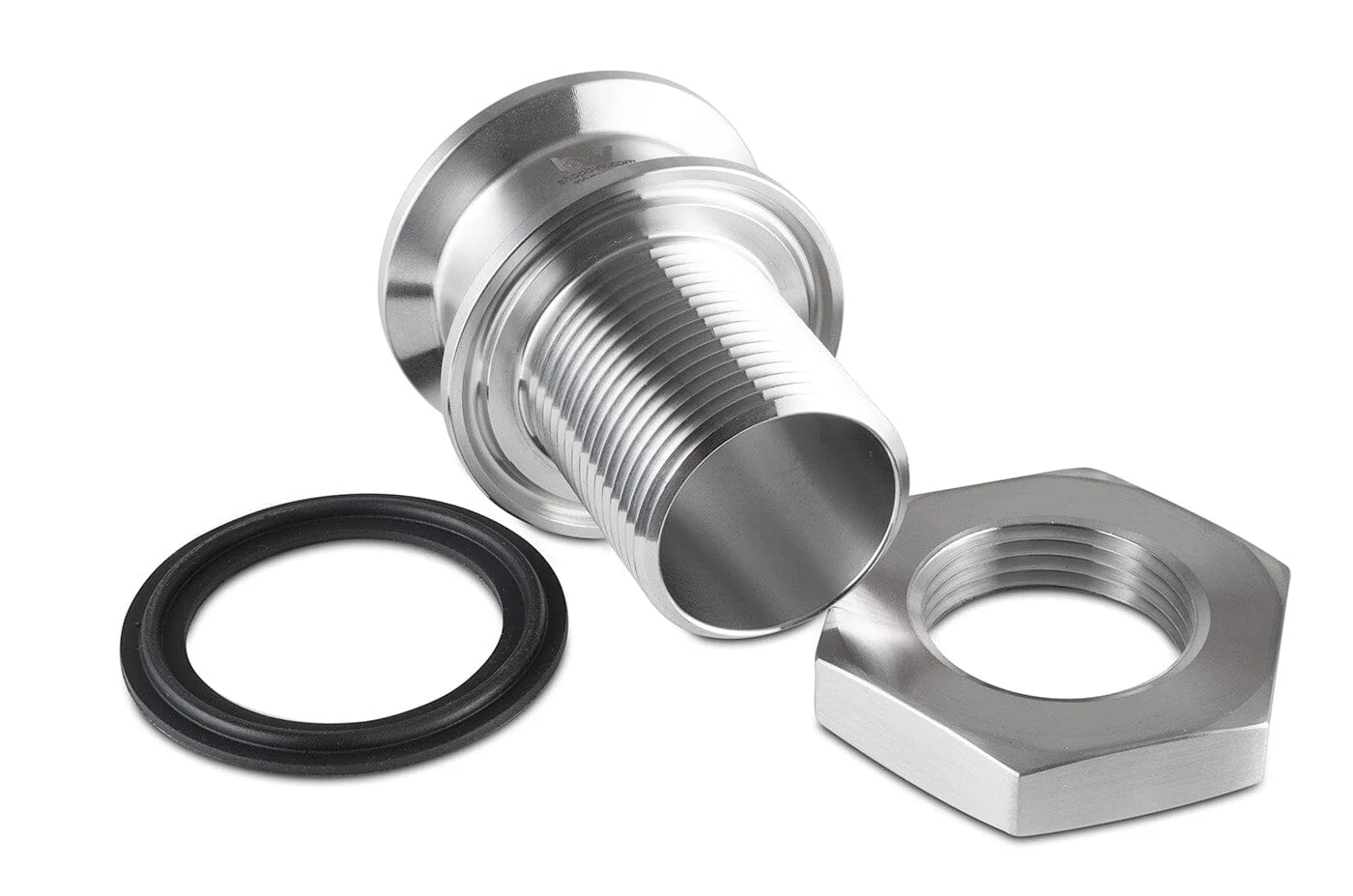

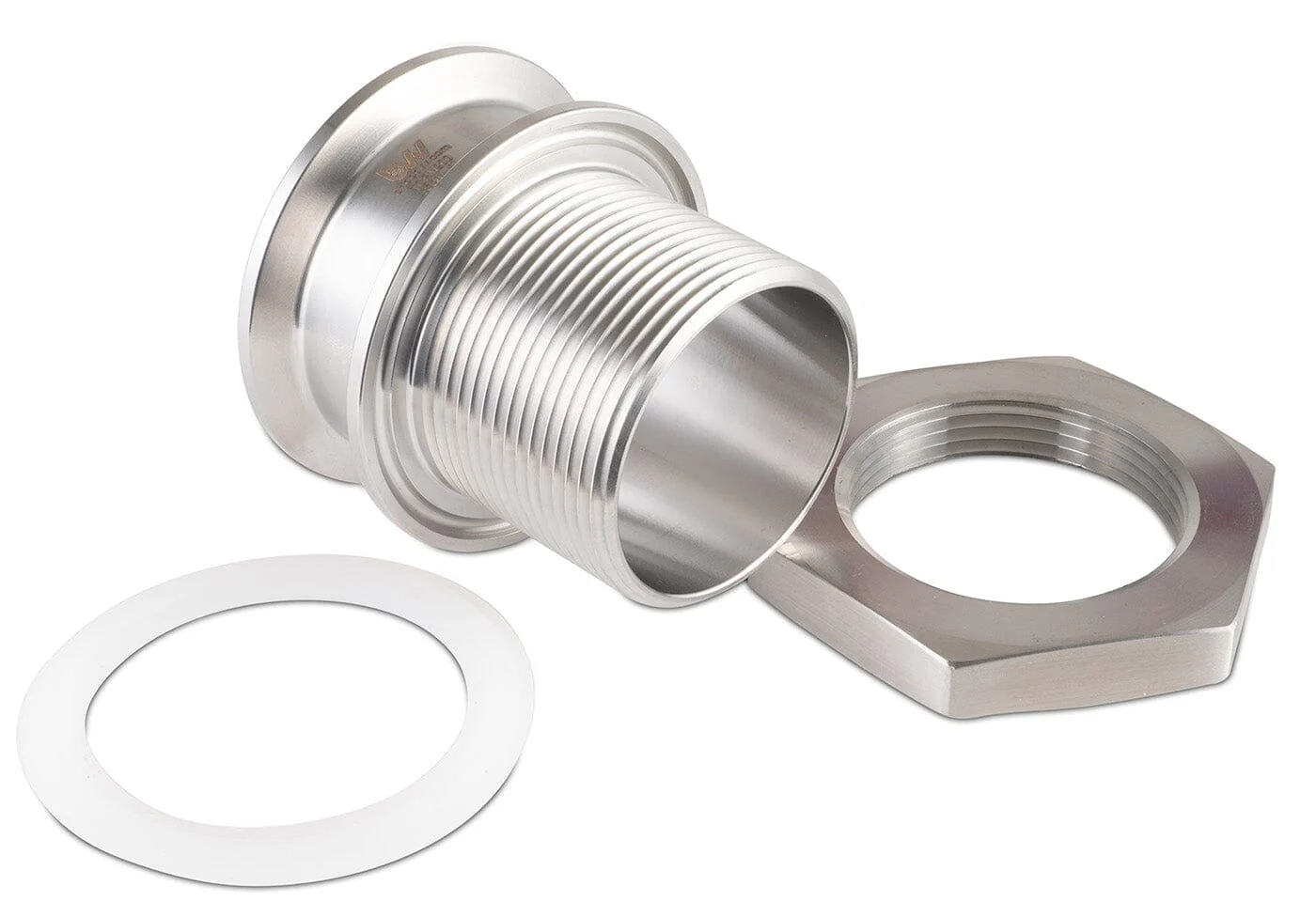

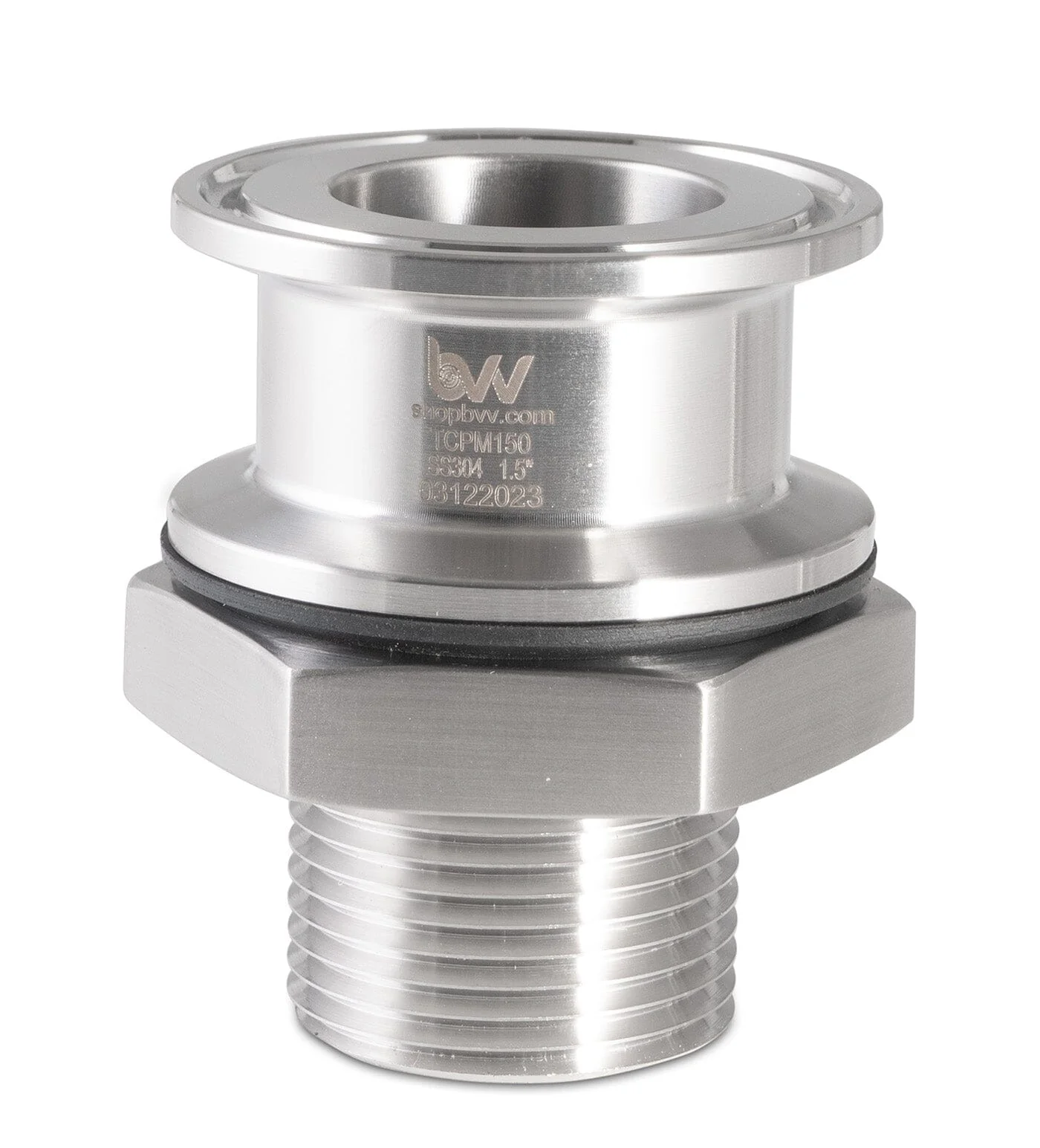

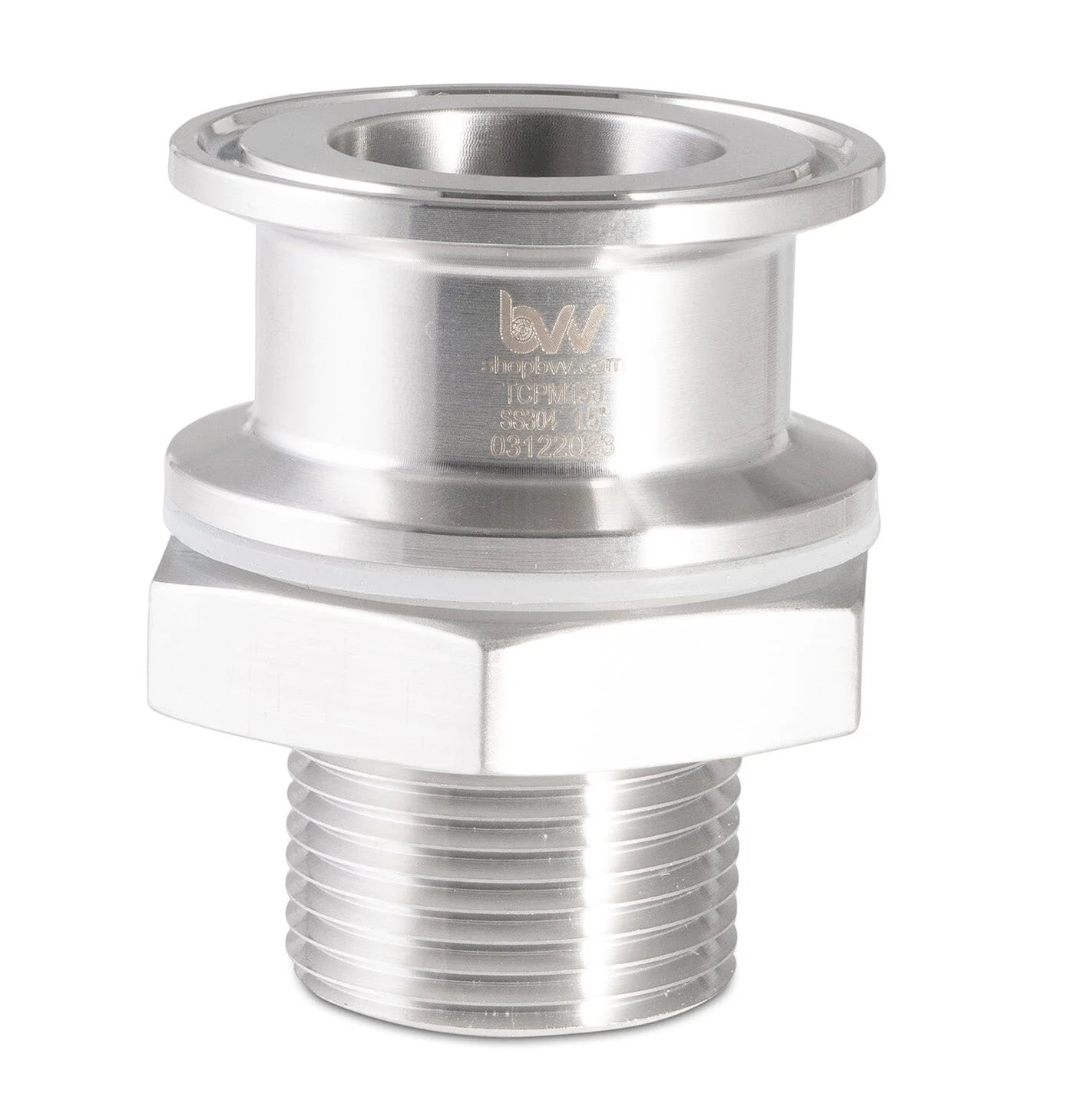

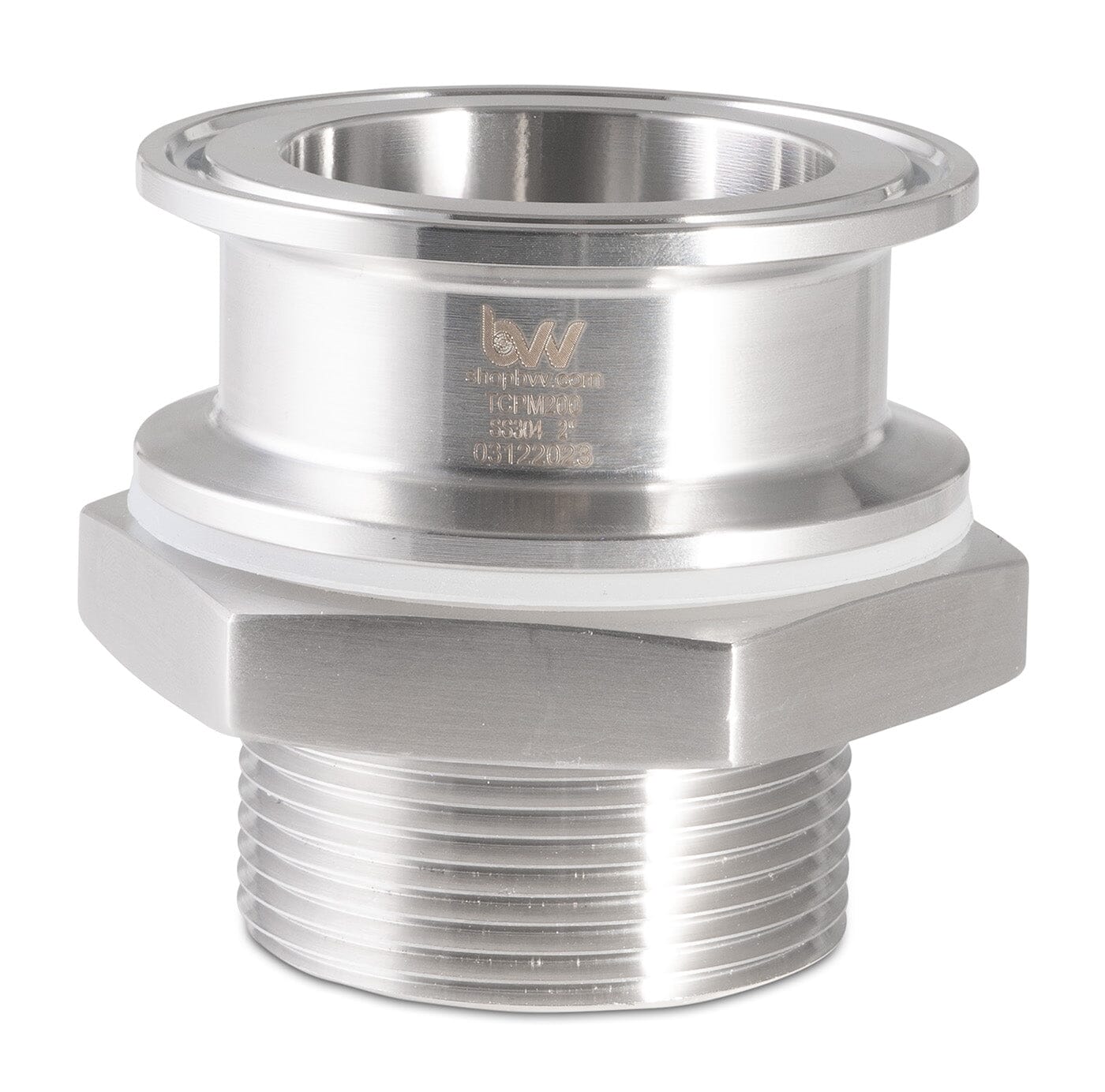

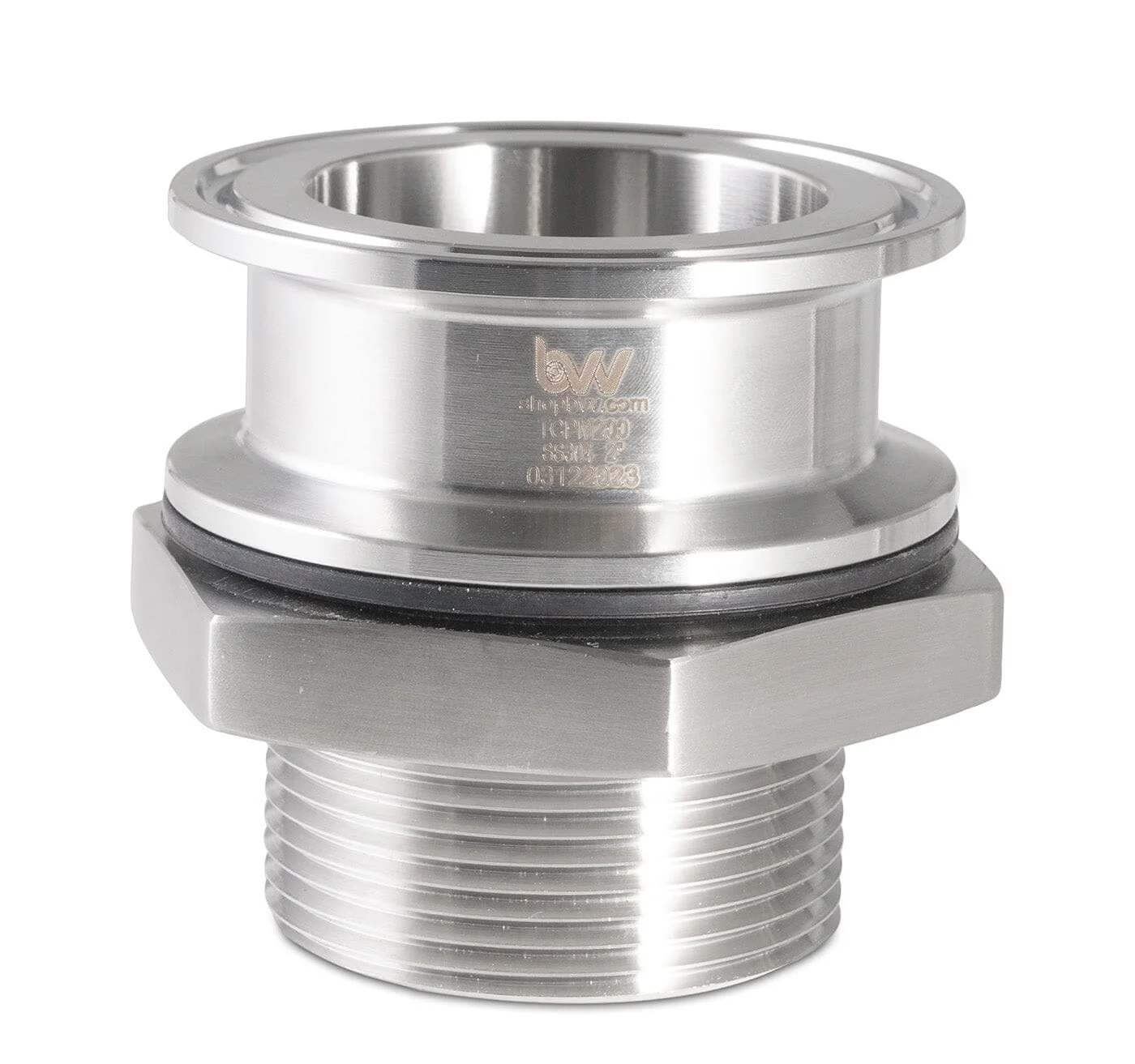

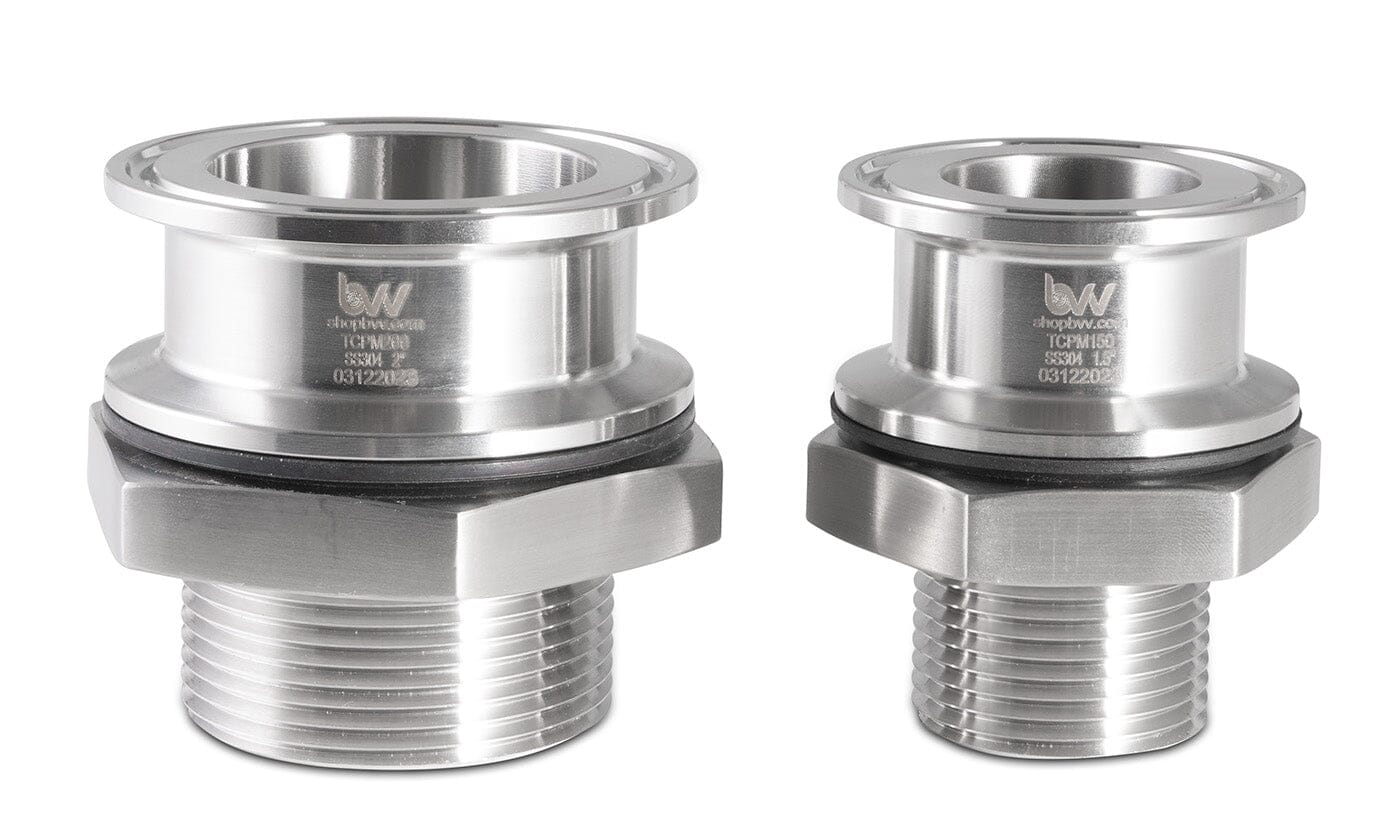

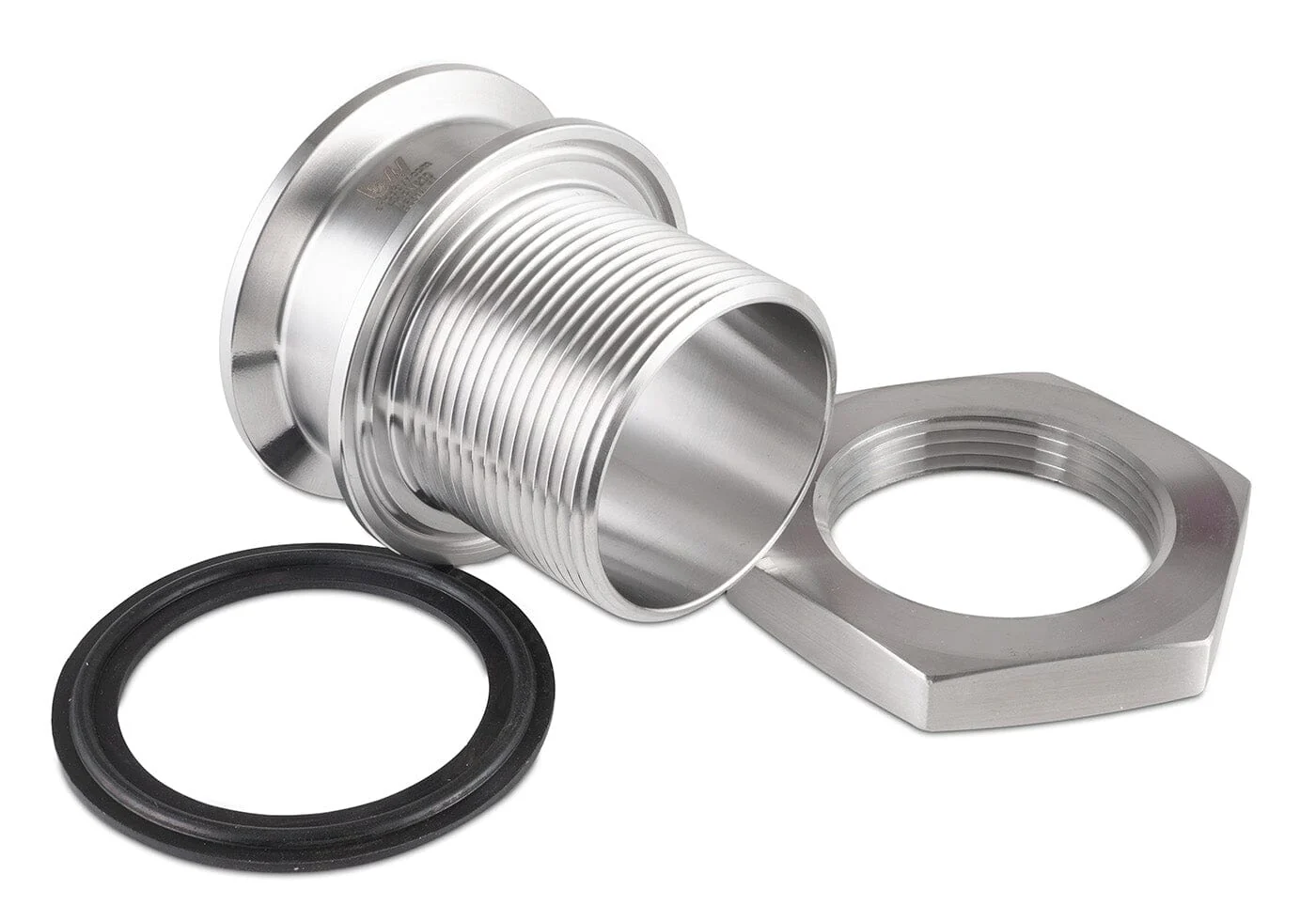

This tri clamp bulkhead or panel mount can be mounted through a vessel wall such as vacuum chamber or tank. It has a silicone or buna-n tri clamp gasket that is placed on the outside of the chamber or vessel. It is capable of holding vacuum, and can also withstand positive pressure 8-10 psi is expected but depending on the installation geometries and material you can expect some higher pressures than that. It will be able to hold vacuum, but not high positive pressure. For best vacuum results, vacuum greases is recommended on the sealing surface of the panel/lid or vessel wall.
Max wall thickness: .875"
Hole Size:

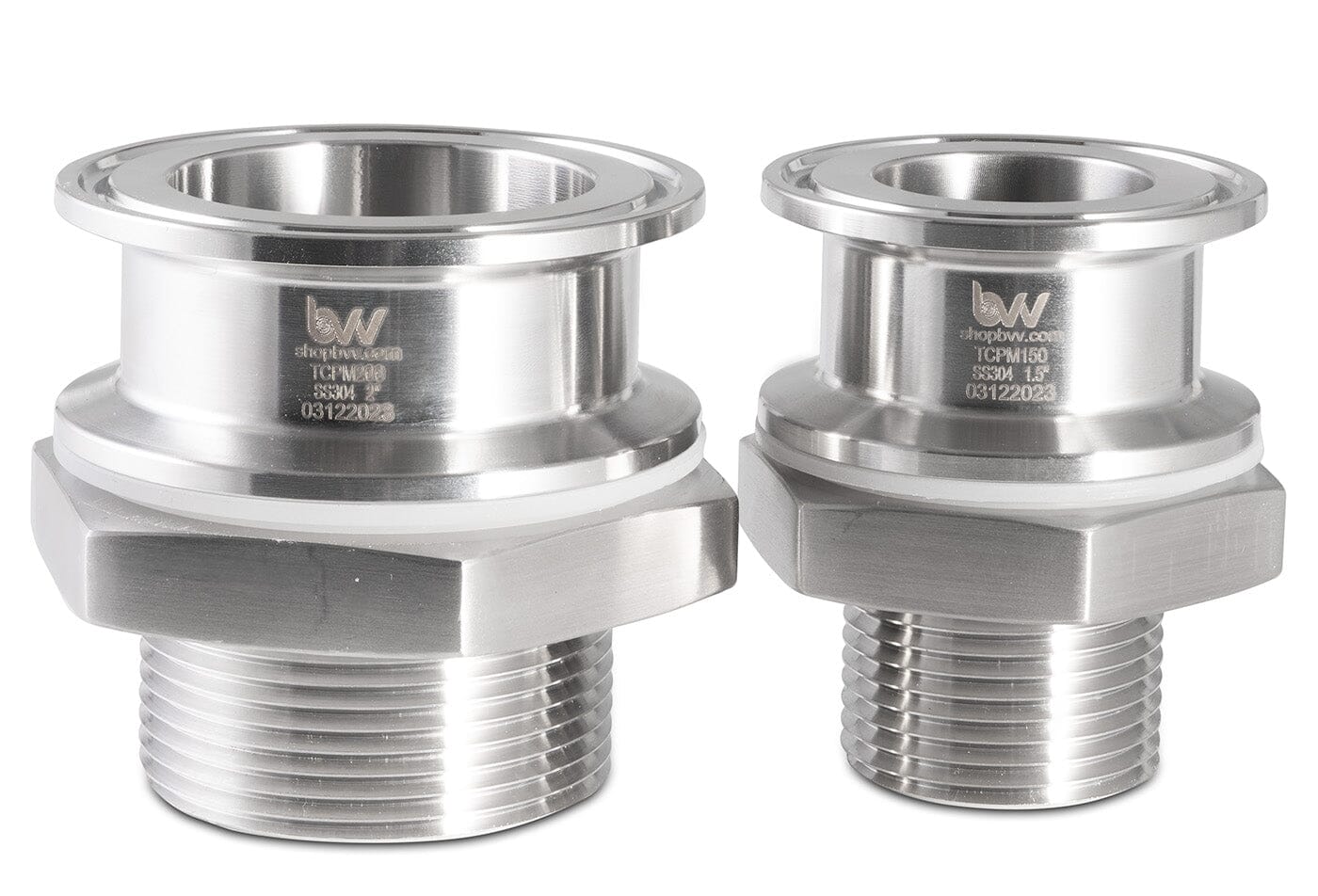

- TCPM150- 1.3-1.4"
- TCPM200- 1.9-2.0"
Thread Size:
- TCPM150- 1" NPS
- TCPM200- 1.5" NPS
Original: $45.00
-70%$45.00
$13.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Stainless Tri-Clamp Weldless Bulkhead
This tri clamp bulkhead or panel mount can be mounted through a vessel wall such as vacuum chamber or tank. It has a silicone or buna-n tri clamp gasket that is placed on the outside of the chamber or vessel. It is capable of holding vacuum, and can also withstand positive pressure 8-10 psi is expected but depending on the installation geometries and material you can expect some higher pressures than that. It will be able to hold vacuum, but not high positive pressure. For best vacuum results, vacuum greases is recommended on the sealing surface of the panel/lid or vessel wall.
Max wall thickness: .875"
Hole Size:
- TCPM150- 1.3-1.4"
- TCPM200- 1.9-2.0"
Thread Size:
- TCPM150- 1" NPS
- TCPM200- 1.5" NPS
