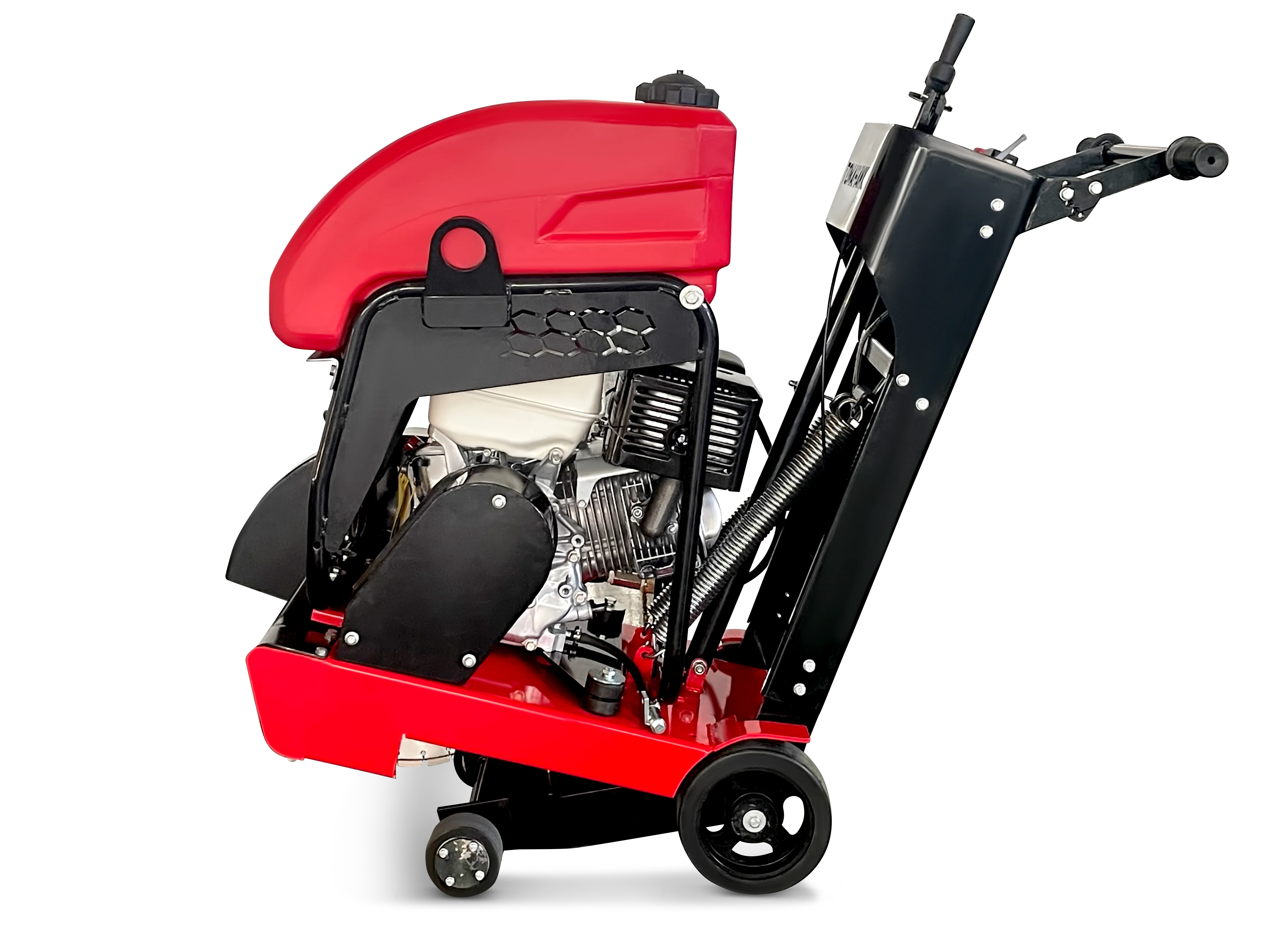

Tomahawk 20" Early Entry Green Concrete Saw with 13 HP Honda GX390 Engine

13 HP HONDA GX390 ENGINE

Powered by the industry’s most reliable engine, the Honda GX390, this saw starts on the first pull and will keep your jobsite running smoothly day after day!

CUT FASTER

With a maximum cutting depth of 1.5 in. and blades up to 10 in.

PRECISE RELIABILITY

Cuts concrete slabs in one clean sweep to avoid damage to your fresh concrete pour.

Description

CUT CONCRETE FASTER



Features

• Excellent for making joints in concrete slabs for random crack control
• Polyurethane wheels for safe operation on fresh concrete
• Used for medium to large concrete pours
• Fits blade sizes up to 20 inches
• Maximum cutting depth of 7.6 inches
• Easy Electric Key Start
• Powered by the Honda GX390 13HP engine
• Arbor Size: Triangular
• Hydro Static Transmission
• Comfortable grip handles for easy operation
• EPA and CARB compliant
• 1-year product warranty
• 3-year engine warranty

Specifications

• Maximum blade diameter, in (mm): 9-10''
• Maximum depth of cut, in (mm) 7/8''- 1 1/2''
• Average Bladeshaft, rpm: 3000
• Blade flanges, in (mm): Triangular
• Wheels front, in (mm): 4'' (101.6)
• Wheels rear, in (mm): 10'' (254)
• Maximum weight uncrated, lbs: 320' (145kg)
• Blade Depth Adjustment: Electric
• Handlebar Adjustment: Adjustable
• Blade guard type: Enclosed
• Number of belts: 1
• Arbor: Triangular
• Start Type: Electric
• Engine Manufacturer: Honda
• Engine Specifications: GX390
• Horsepower: 13HP

• Fuel Tank Capacity:  6.4 U.S. qts (6.1 liters)
• Oil Capacity:  1.16 US qt (1.1 L)
• Maximum weight crated, lbs: 380 lbs (172.3 kg)
• Maximum weight uncrated, lbs: 320 lbs (145.1kg)
• Dimensions: 45" x 27" x 36" ( 114.3cm x 68.5cm x 91.4cm)

Package Includes

Applications

• Parking Lots

• Side Walks

• Residential and Commercial Applications
• Garages
• Patios
• Driveways
• Decorative Jobsite Enhancements

What Blade Do I Need?

DBR6 for Medium/Hard Aggregate

The DBR6 early entry saw blade strikes a balance between hardness and toughness, making it versatile for cutting through medium to hard aggregate. Its segments ensure clean and precise cuts, providing a polished finish. This blade is designed for durability, making it suitable for a wide range of aggregate hardness levels.

DBP6 for Ultra Hard Aggregate

Designed specifically for ultra-hard aggregate, the DBP6 early entry saw blade boasts extreme hardness to tackle the toughest cutting conditions. It excels in precision cutting, offering accuracy and control in challenging environments. With longevity in mind, the DBP6 is built to withstand the most demanding cutting tasks.

How Does this Ship?

⚠ This is an oversized item which requires shipment on a freight truck. Ship this item to a business address to shave 1-2 days off the transit time!

HOW DOES THIS SHIP?

CA Proposition 65 Warning

⚠ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Info and Guides

• Specification Sheet

• Operations Manual

• Parts Manual
