Tri-Clamp Ball Valve 316L SS (Nitrogen Tested)

316L SS Tri-Clamp/Tri-Clover Ball Valve - Nitrogen Tested

(Valve holds a 30 day limited warranty)

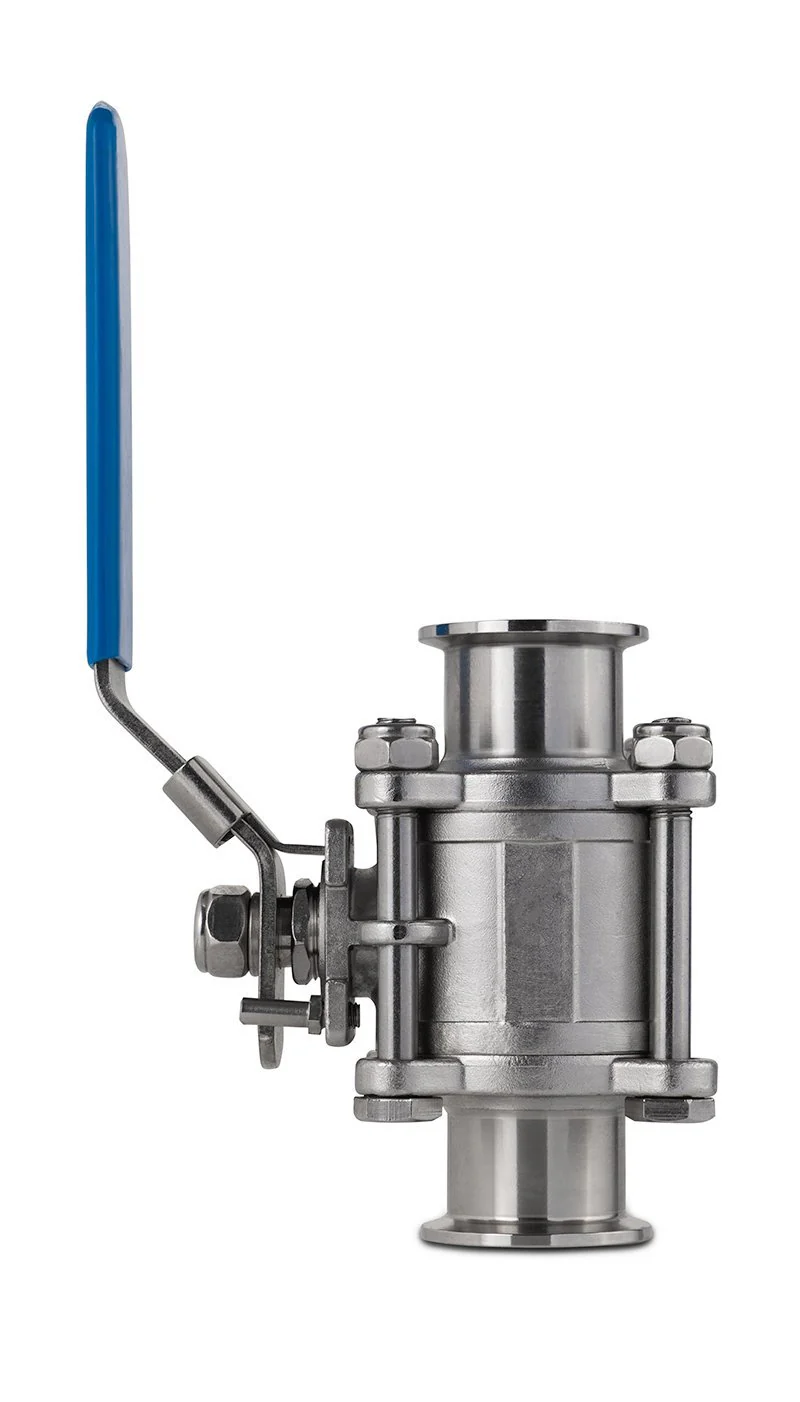

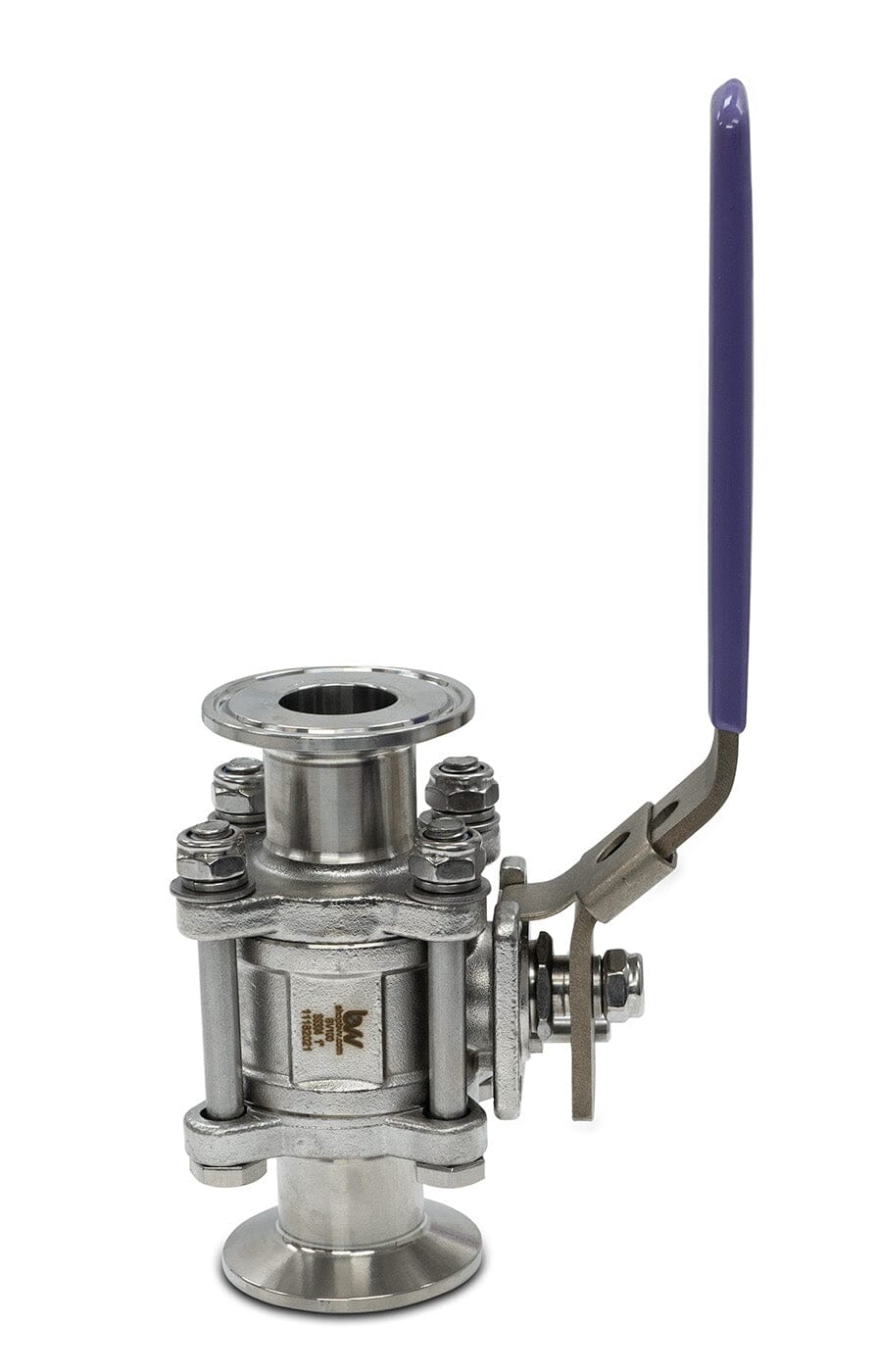

The 316L Stainless Steel Tri-Clamp Sanitary connection ball valve allows the user to restrict flow on their extraction system and close off a connection to a spool to allow the material to soak for longer durations extracting more of the essential oils. This Ball Valve is 1/4 turn locking handle with the 3-piece PTFE encapsulated core that is rebuildable if needed. This ball valve is nitrogen tested for leaks at BVV™ to ensure the ball valve is safe to operate.

Specifications
Material:	316L Stainless Steel
Handle Type:	1/4 Turn Locking
Connection Type(s):	Tri-Clamp

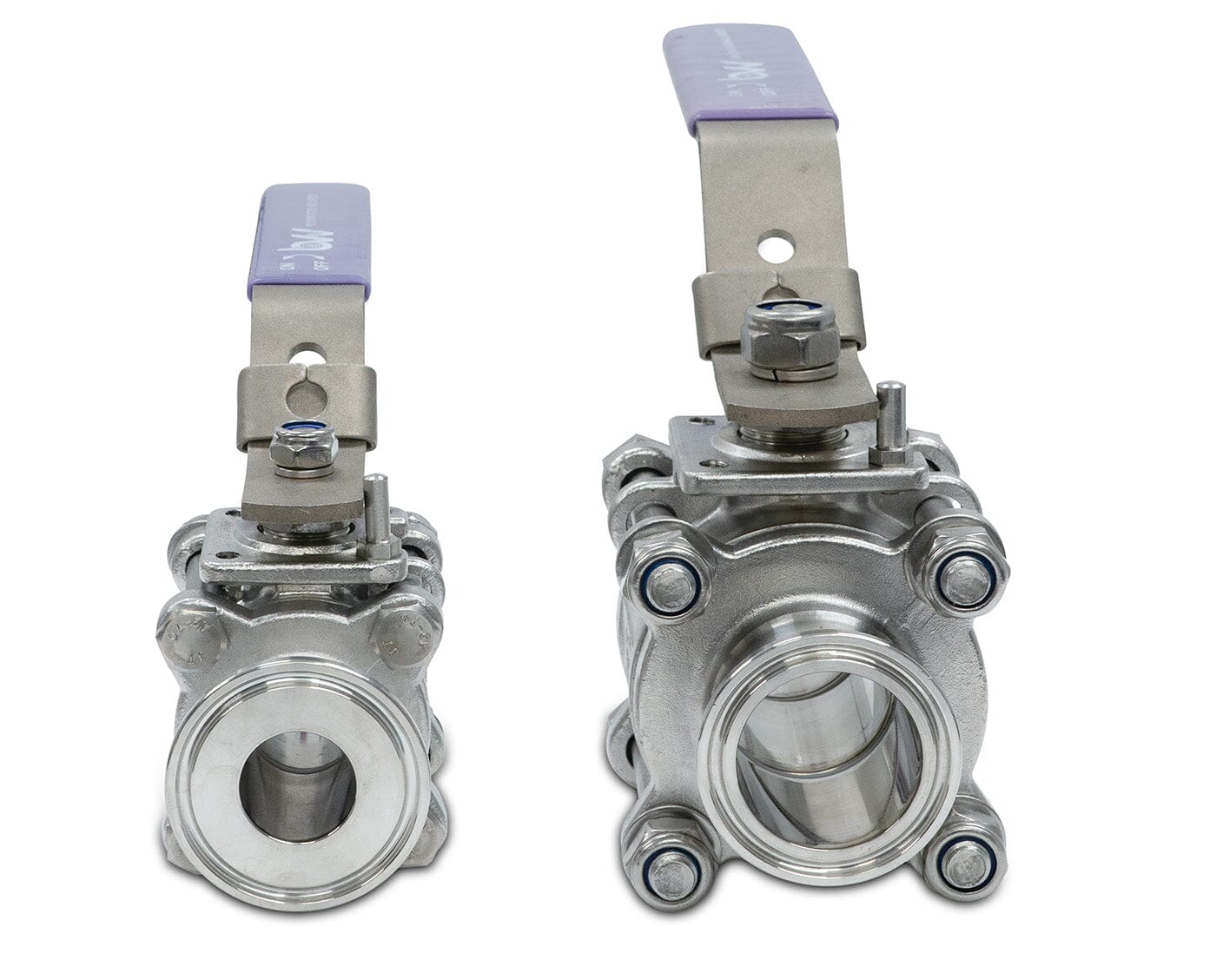

Sizes Available:	1" (Fits 1.5" Tri-Clamp)
	1.5"
	2"
Temperature Range:	-20℃ To +150℃
Working Pressure:	1000 WOG



BVV™ Tri Clamp Ball Valve - Data Sheet



 Note: the valve is warrantied for 30 days from defects in workmanship
