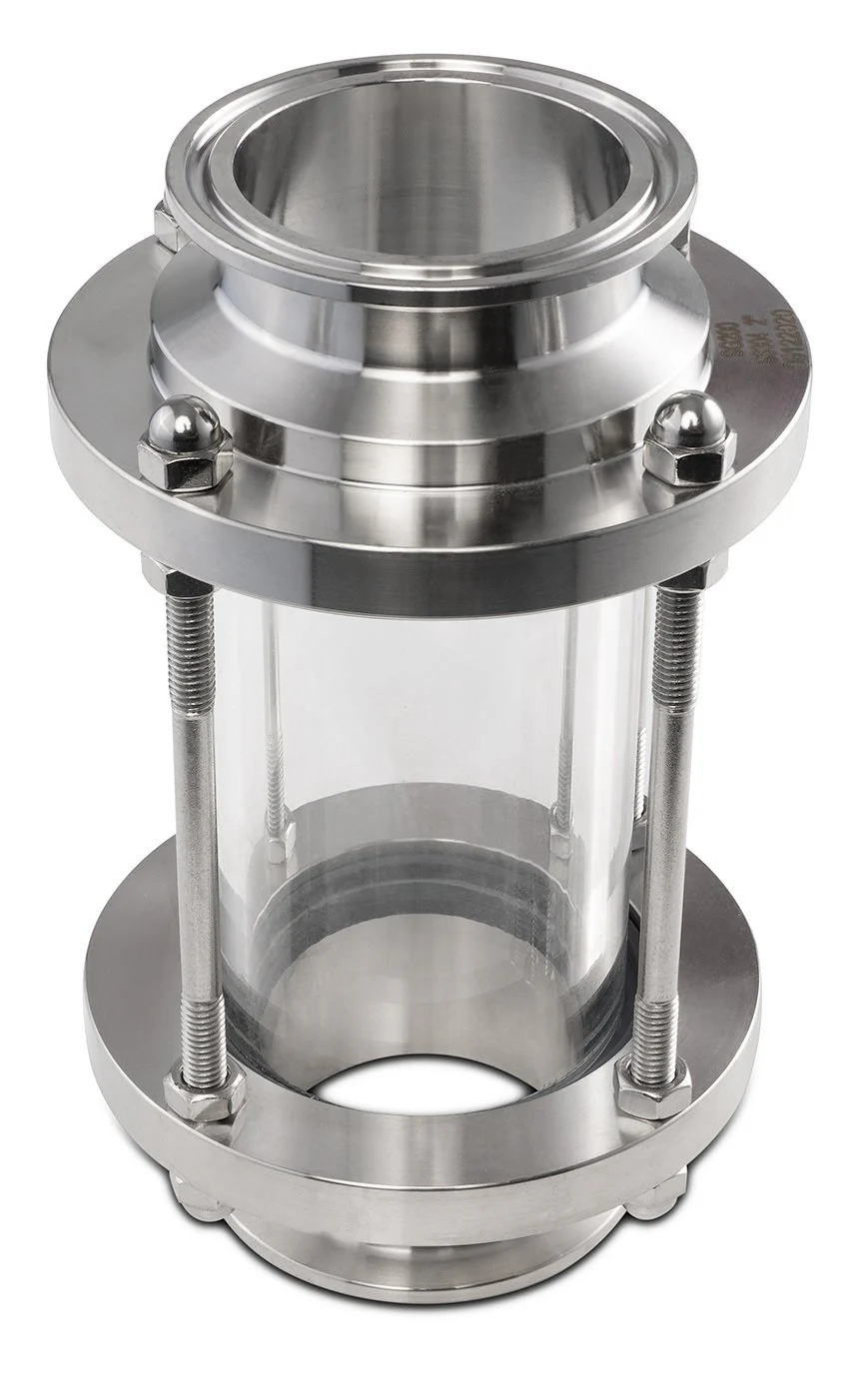

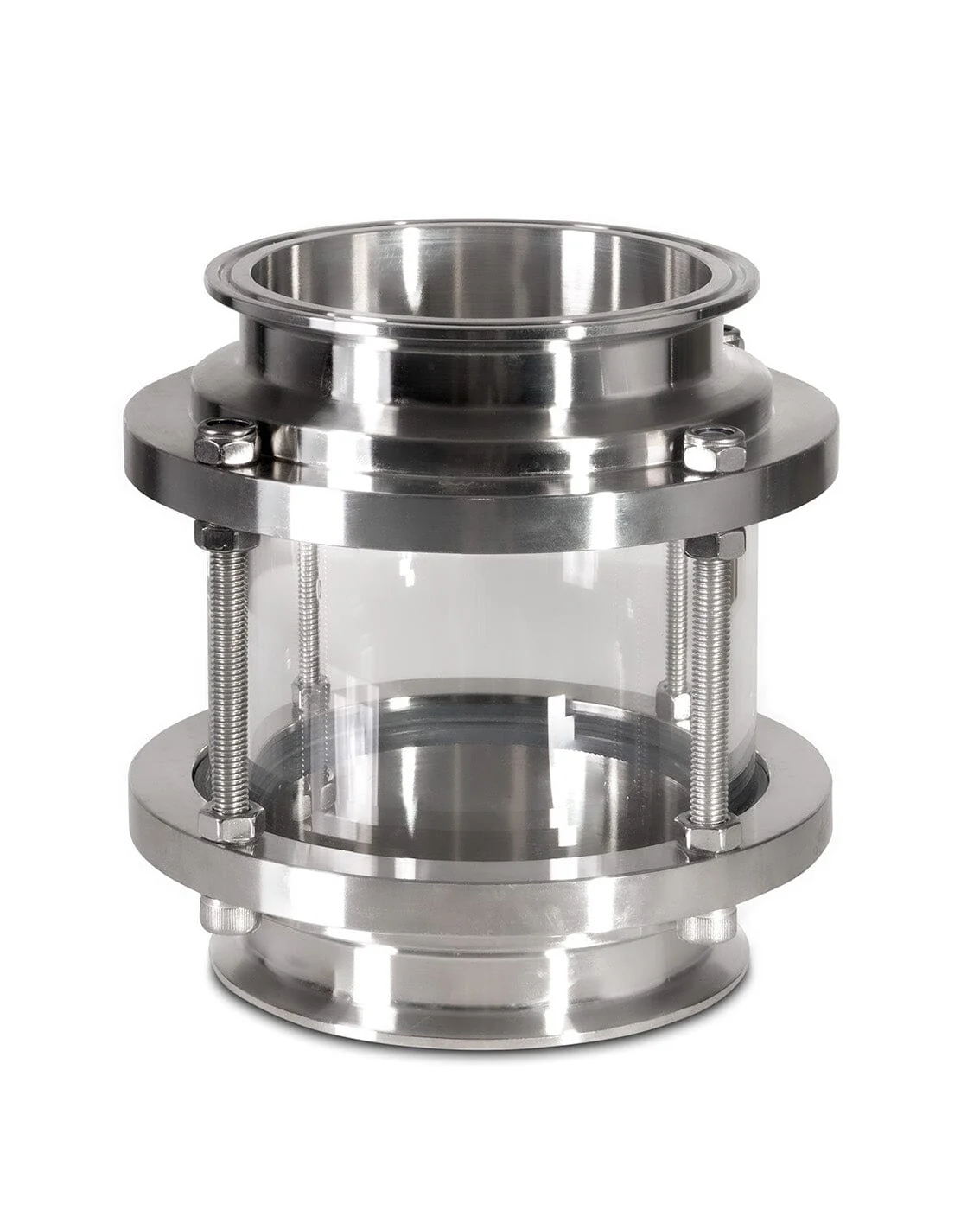

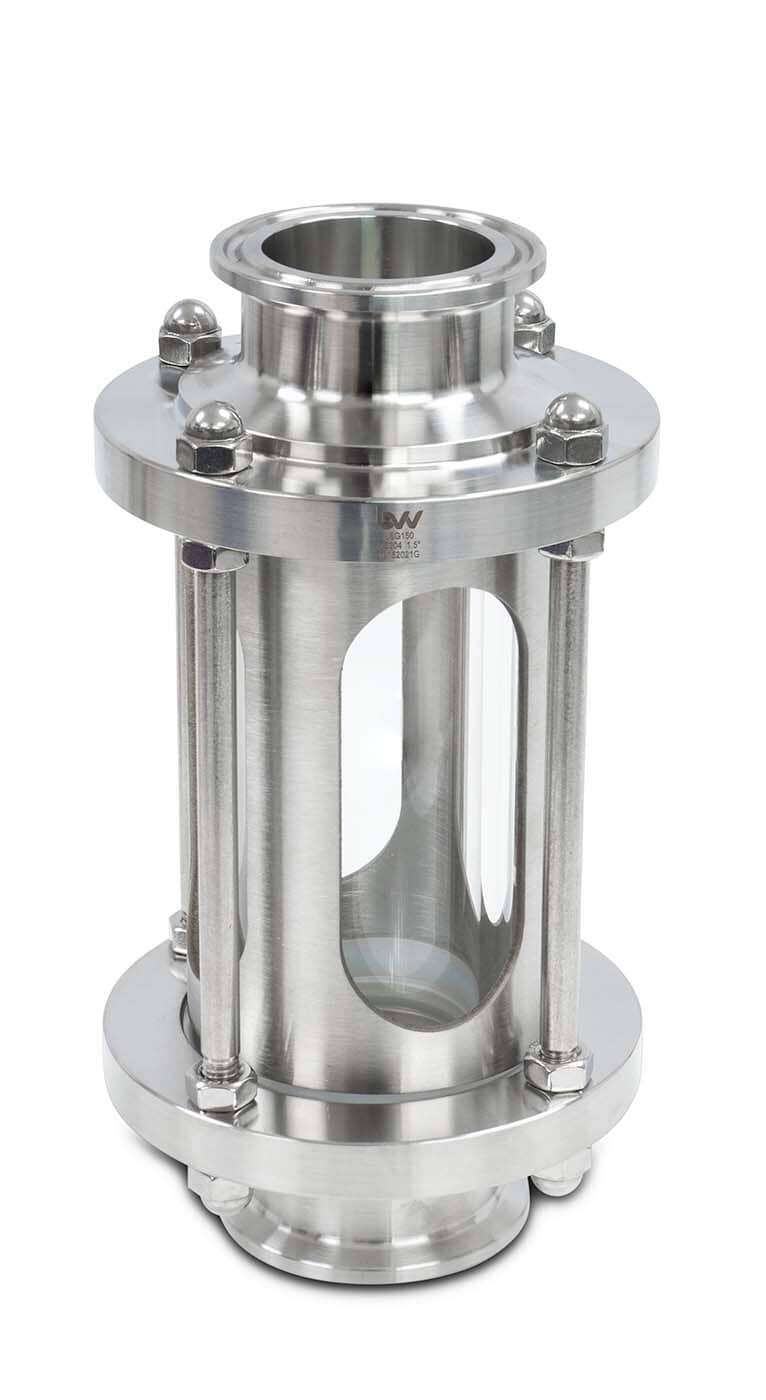

Tri-Clamp Sight Glass - Long

Tri-Clamp Sight Glass - Long

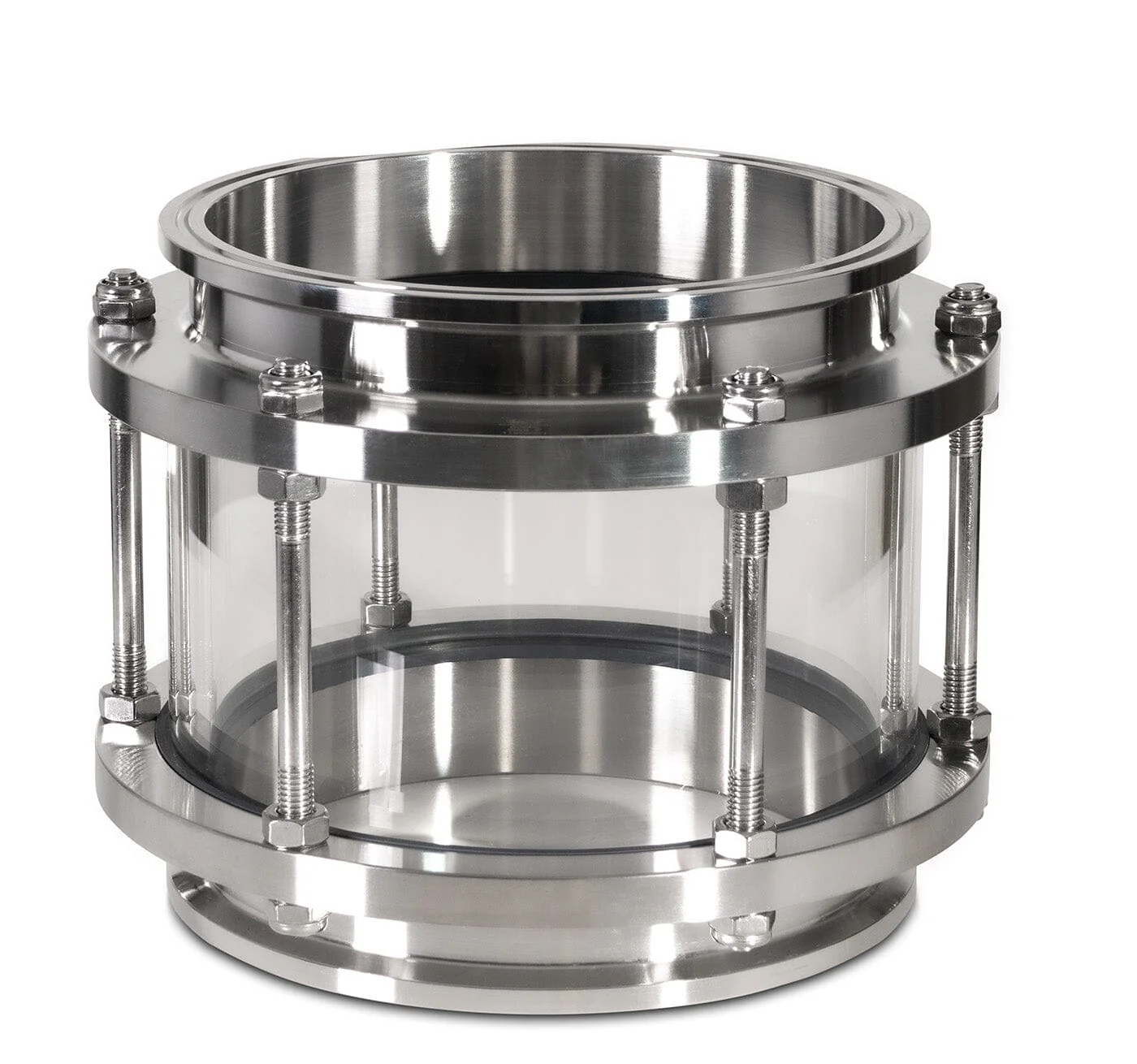

These tall sight glasses are a great additions closed-loop extraction system to view the liquefied solvent flowing through your system and see the color before the purging process is completed. The short sight glass also allows the user to add a viewing port to their system without adding a lot of additional height compared to a normal Tri-Clamp sight glass. Unlike many competitors, this sight glass is also nitrogen tested for leaks at 100 PSI before it is sent to the customer to ensure safe operation of their extraction system.

***Note: Does not include clamp or gasket.

Specifications:

• Sight Glass Material: 304 Stainless Steel
• Glass Material: Borosilicate
• Gasket Material: Buna
• Connection Type: Tri-Clamp x Tri-Clamp

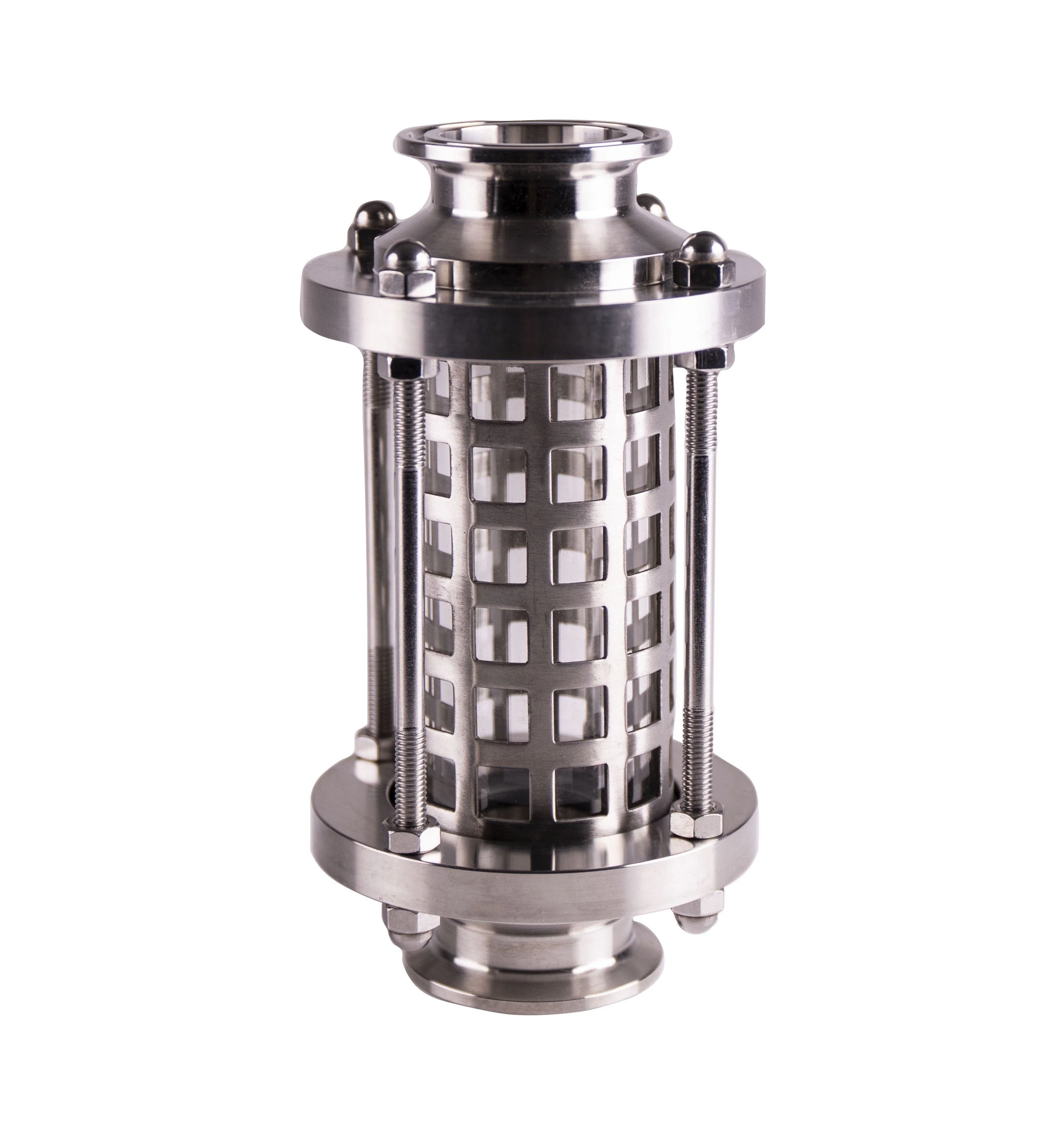

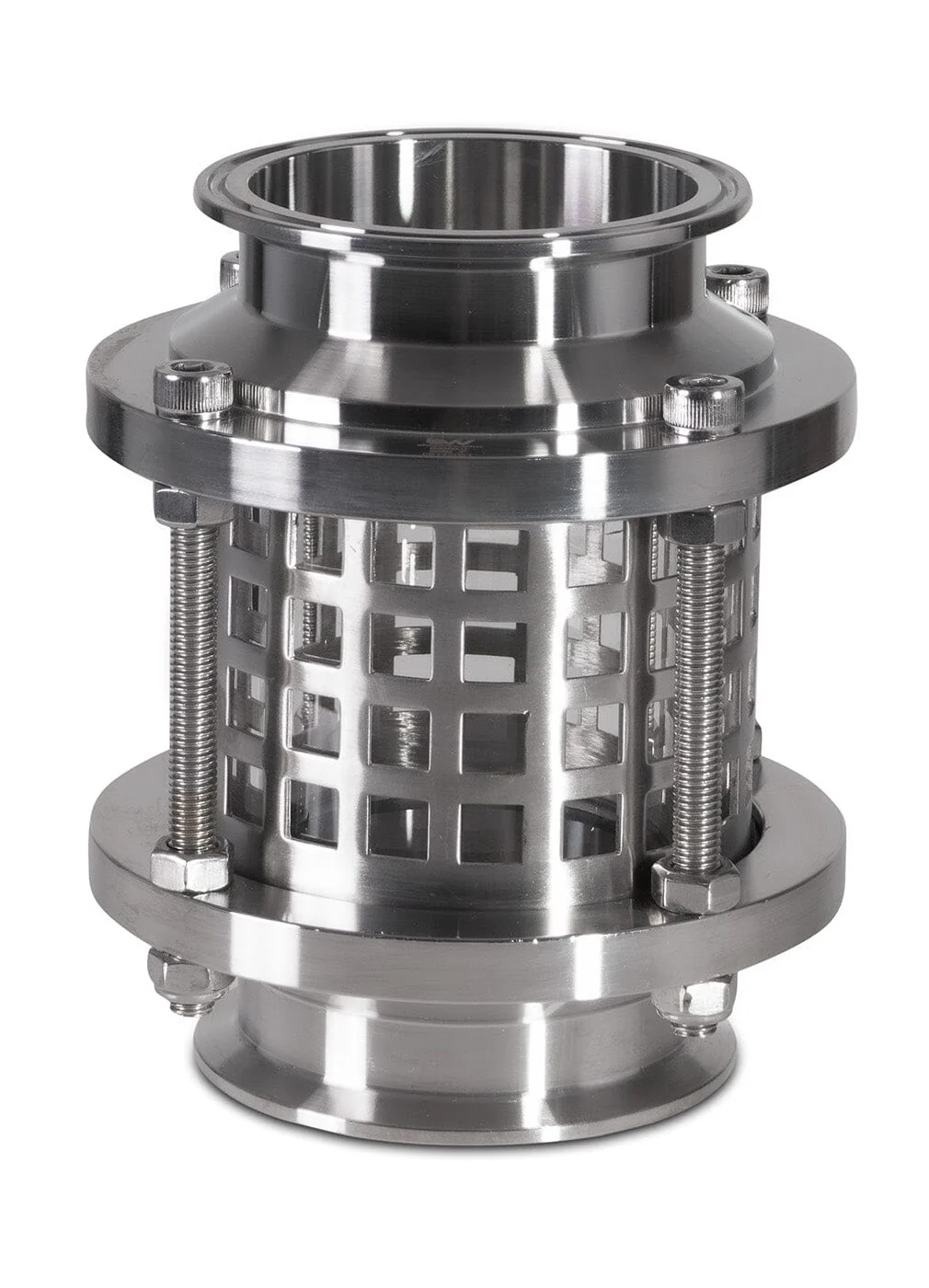

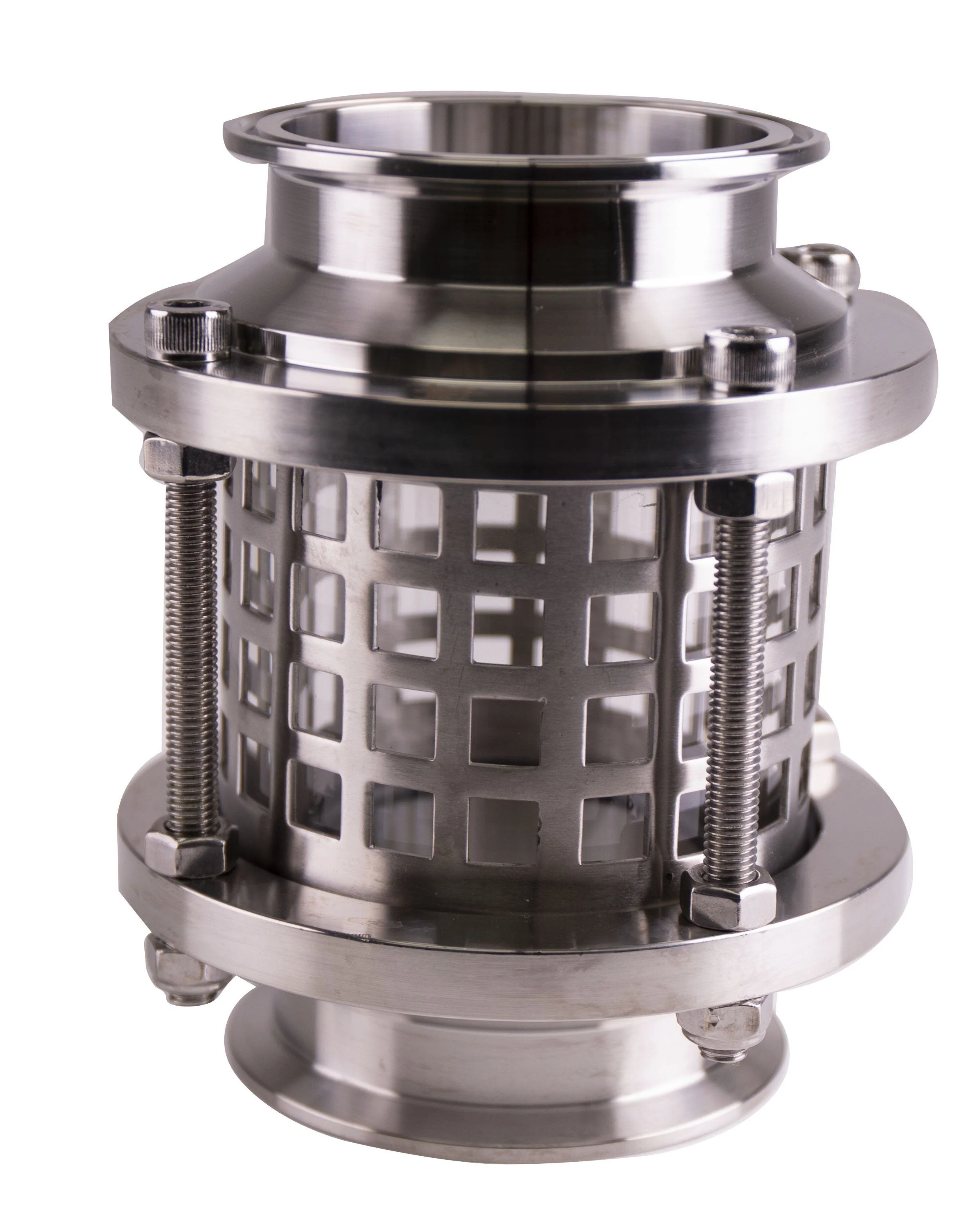

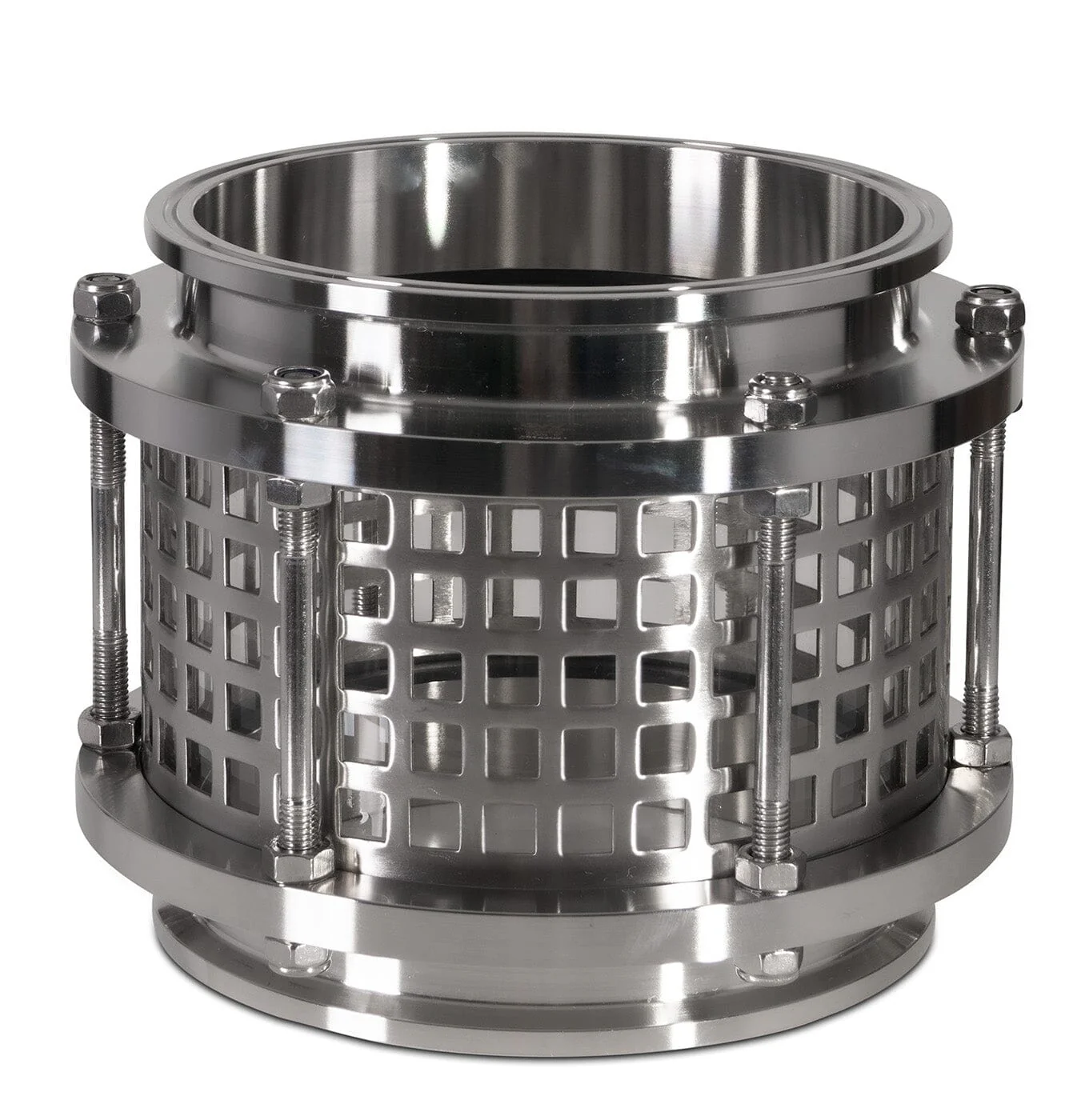

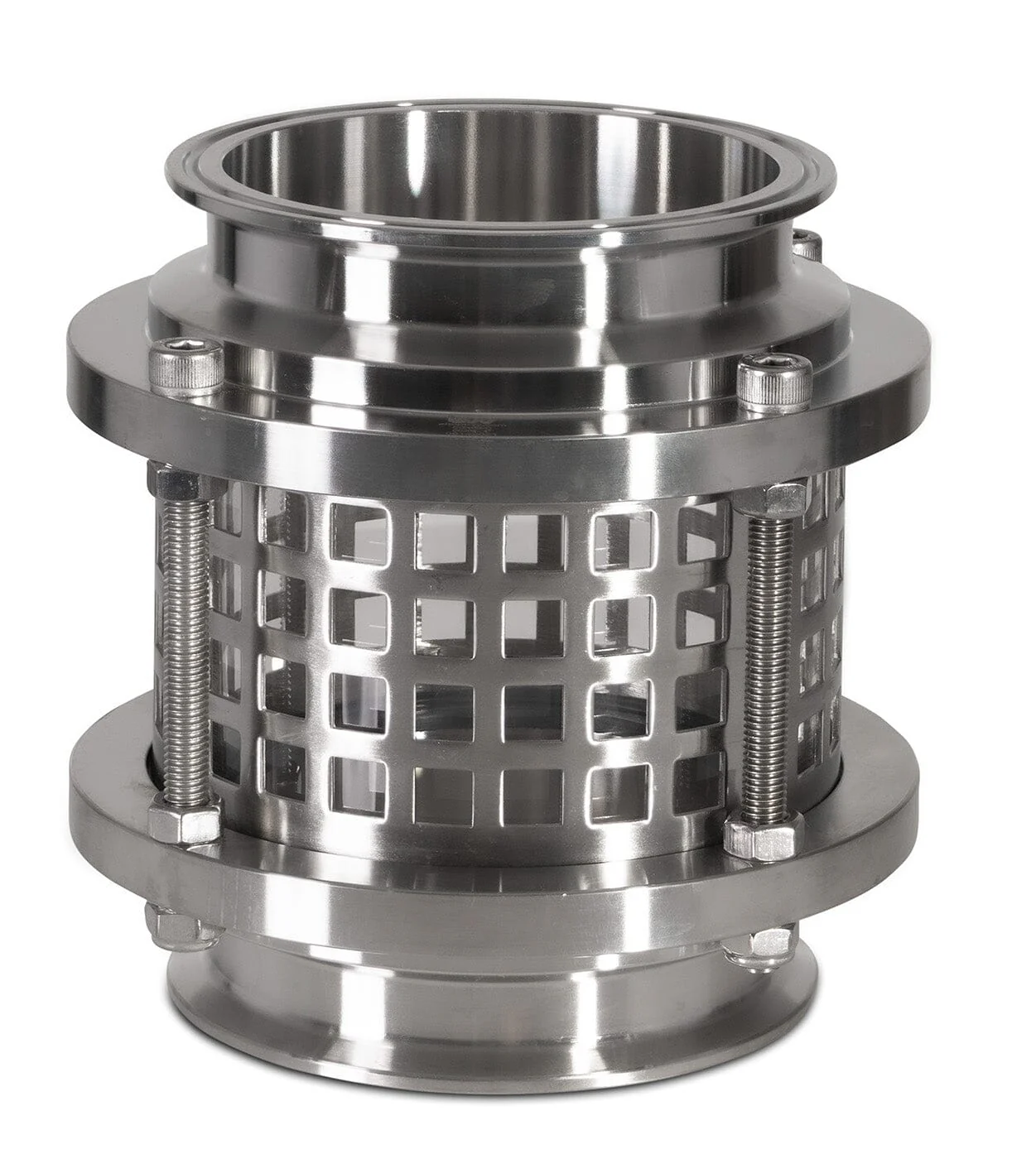

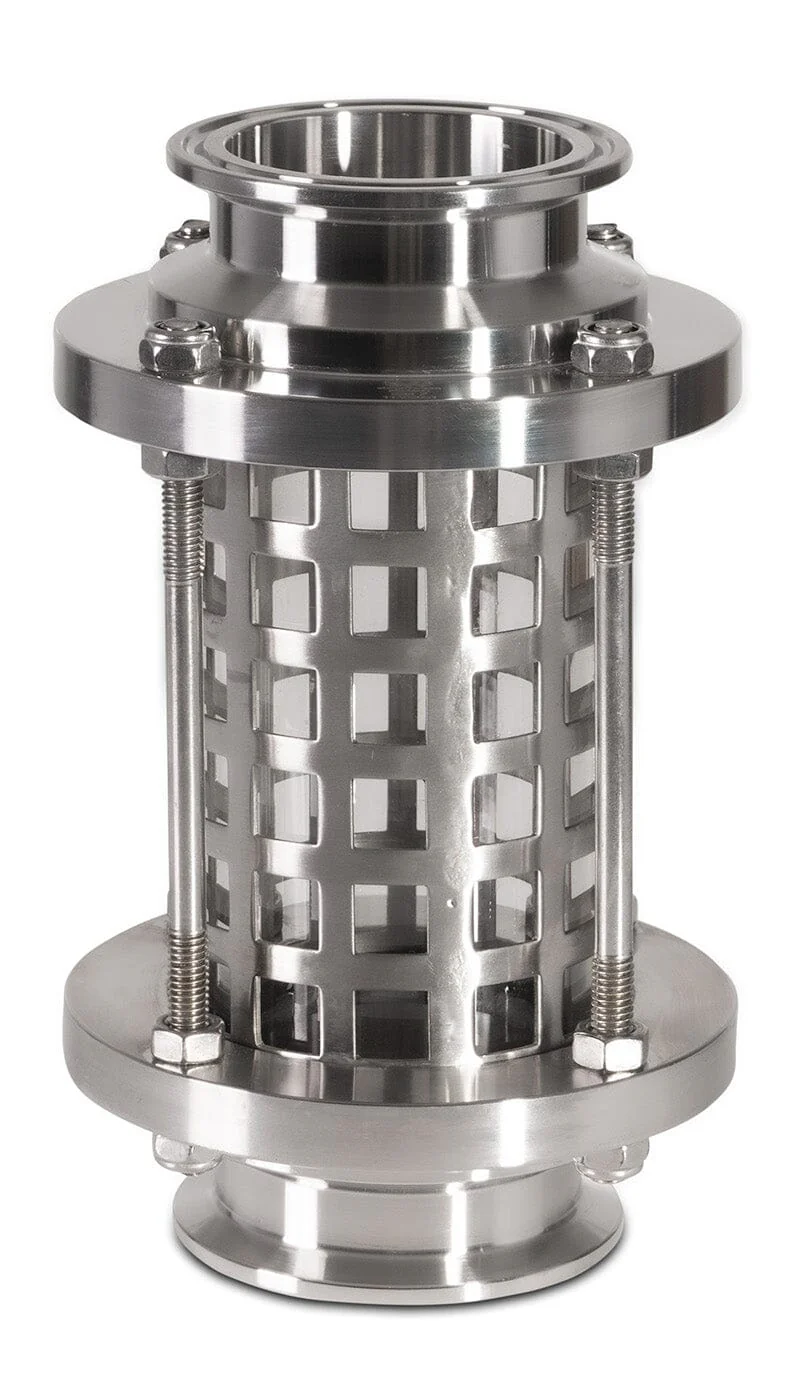

Specifications for Caged Sight Glasses ONLY

Product	Temperature Spec (Min – Max)	Max Pressure Rating	Gasket Material	Glass Material & Thickness
SG150-C	-20 - 100°C	230 PSI	Butyronitrile	Pyrex Glass Ø45X7X100MM
SG200-C	-20 - 100°C	200 PSI	Butyronitrile	Pyrex Glass Ø60X7X100MM
SG300-C	-20 - 100°C	180 PSI	Butyronitrile	Pyrex Glass Ø85X8X80MM
SG400-C	-20 - 100°C	165 PSI	Butyronitrile	Pyrex Glass Ø119X8X80
SG600-C	-20 - 100°C	150 PSI	Butyronitrile	Pyrex Glass Ø164X8X87
