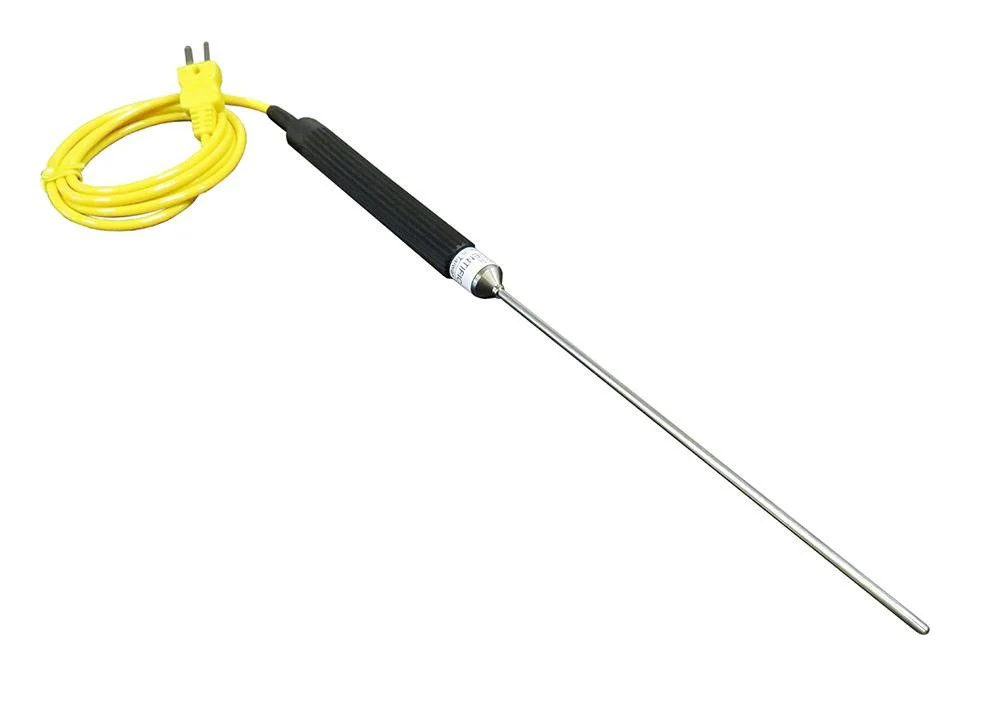

Type K Immersion Thermometer Probe, Large

Product image 1
Product image 2
Product image 3

Type K Immersion Thermometer Probe, Large

The primary difference between Type J and Type K thermocouples is the measuring range, and the sensitivity. Type K is the most common general-purpose thermocouple with a sensitivity of approximately 41 µV/°C. A wide variety of probes are available in its −50°C to +900°C / -58°F to +1652°F range. Type K wire color standard is yellow (+) and red (-). Type J has a more restricted range of −50 to +400°C, but higher sensitivity of about 50 µV/°C. Type J wire color standard is white (+) and red (-).

Specifications

Immersion & General Purpose
Type Application Measurement Range Accuracy
K Large -50 to 400ºC
-58 to 752ºF		 ± 0.75%
Dimensions Handle Length: 5.2" (133 mm)
Probe Length: 6" (152 mm)
Probe Diam: 3 mm
Cord Length: 40"

Comparison Chart
