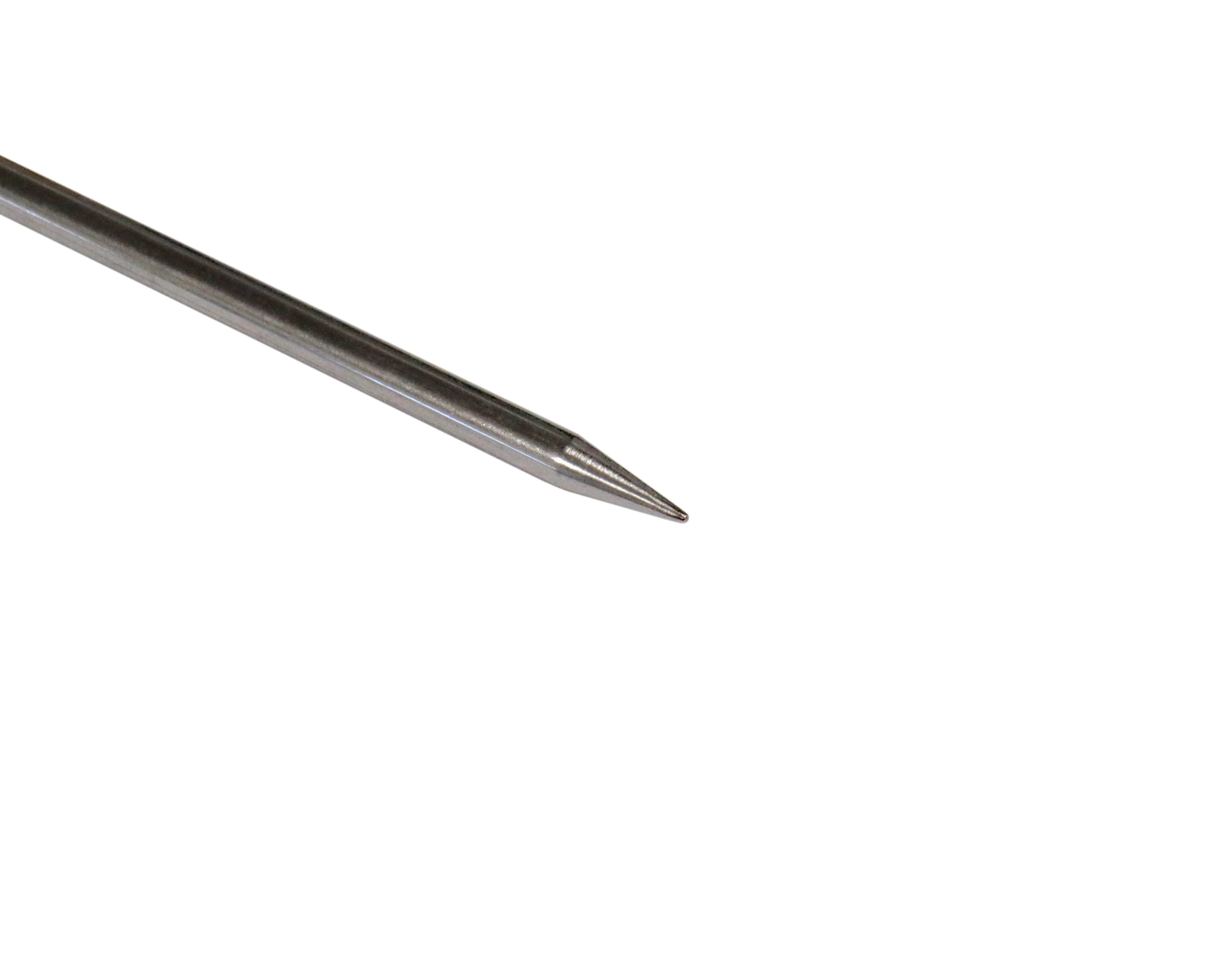

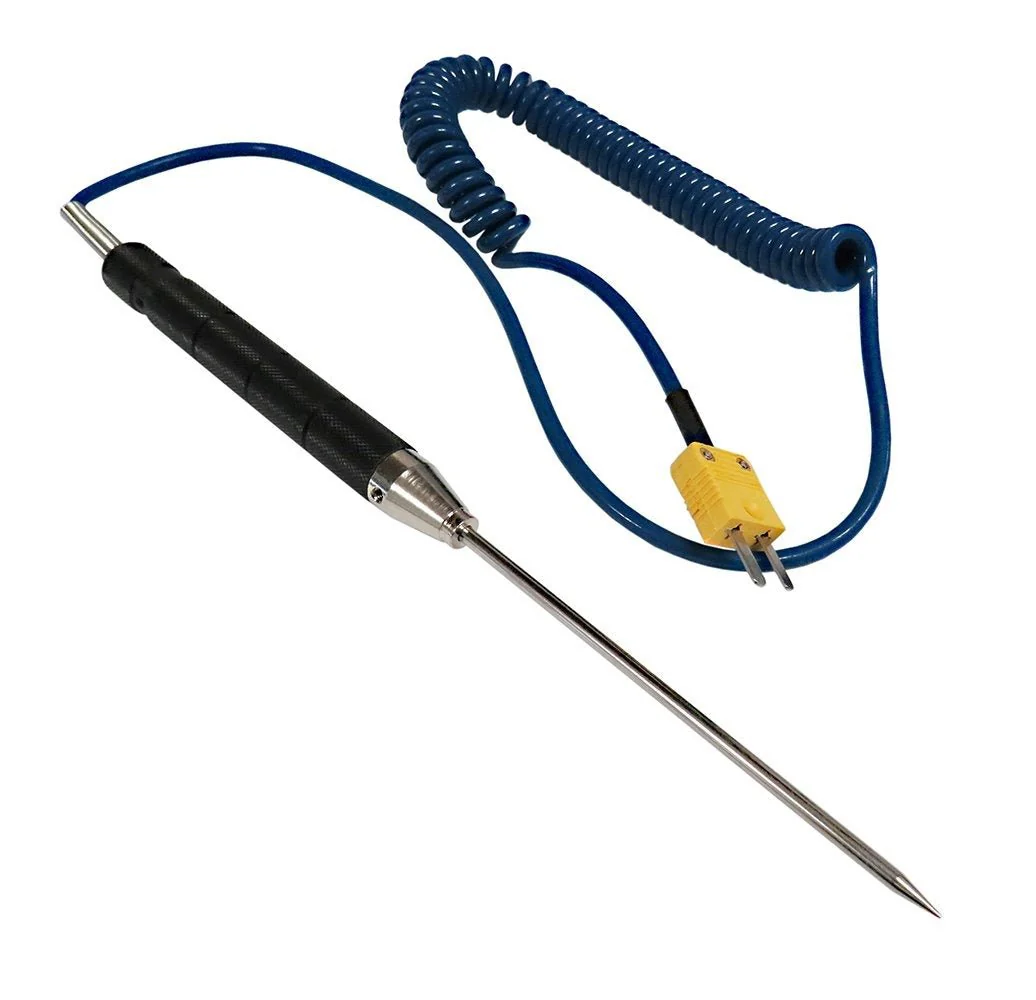

Type K Penetration Thermometer Probe

Product image 1
Product image 2

Type K Penetration Thermometer Probe

The primary difference between Type J and Type K thermocouples is the measuring range, and the sensitivity. Type K is the most common general-purpose thermocouple with a sensitivity of approximately 41 µV/°C. A wide variety of probes are available in its −50°C to +900°C / -58°F to +1652°F range. Type K wire color standard is yellow (+) and red (-). Type J has a more restricted range of −50 to +400°C, but higher sensitivity of about 50 µV/°C. Type J wire color standard is white (+) and red (-).

Specifications

Penetration
Type Application Temperature Range Dimensions
K Insertion -50 to 400ºC
-58 to 752ºF		 Handle Length: 4.5"
Probe Length: 4"
Probe Diam: 3 mm
Max Cord Length: 53"

Comparison Chart



$15.18

Original: $50.60

-70%
Type K Penetration Thermometer Probe—

$50.60

$15.18

Product Information

Shipping & Returns

Description

The primary difference between Type J and Type K thermocouples is the measuring range, and the sensitivity. Type K is the most common general-purpose thermocouple with a sensitivity of approximately 41 µV/°C. A wide variety of probes are available in its −50°C to +900°C / -58°F to +1652°F range. Type K wire color standard is yellow (+) and red (-). Type J has a more restricted range of −50 to +400°C, but higher sensitivity of about 50 µV/°C. Type J wire color standard is white (+) and red (-).

Specifications

Penetration
Type Application Temperature Range Dimensions
K Insertion -50 to 400ºC
-58 to 752ºF		 Handle Length: 4.5"
Probe Length: 4"
Probe Diam: 3 mm
Max Cord Length: 53"

Comparison Chart
