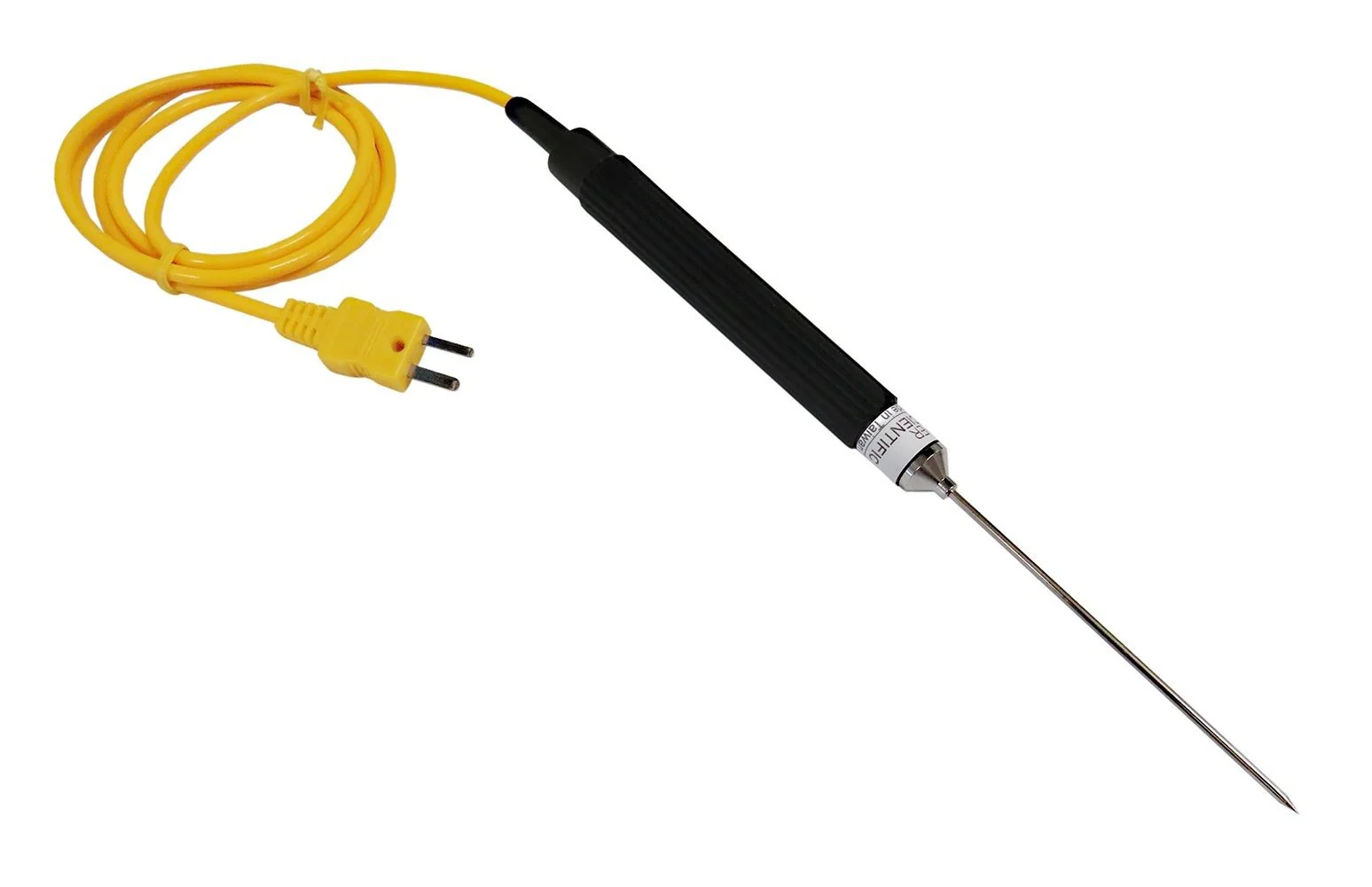

Type K Penetration Thermometer Probe, Small

The primary difference between Type J and Type K thermocouples is the measuring range, and the sensitivity. Type K is the most common general-purpose thermocouple with a sensitivity of approximately 41 µV/°C.

A wide variety of probes are available in its −50°C to +900°C / -58°F to +1652°F range. Type K wire color standard is yellow (+) and red (-). Type J has a more restricted range of −50 to +400°C, but higher sensitivity of about 50 µV/°C. Type J wire color standard is white (+) and red (-).

Specifications

Penetration Thermometer Probe
Type	Application	Temperature Range	Dimensions
K	Small	-30 to 480ºC -22 to 896ºF	Handle Length: 4.5" Probe Length: 3.25" Probe Diam: 2 mm Cord Length: 44"

Comparison Chart
