Wide Range Pressure Meter
Covers a wide pressure range from 0 to 725 psi, not usually found in a single manometer.

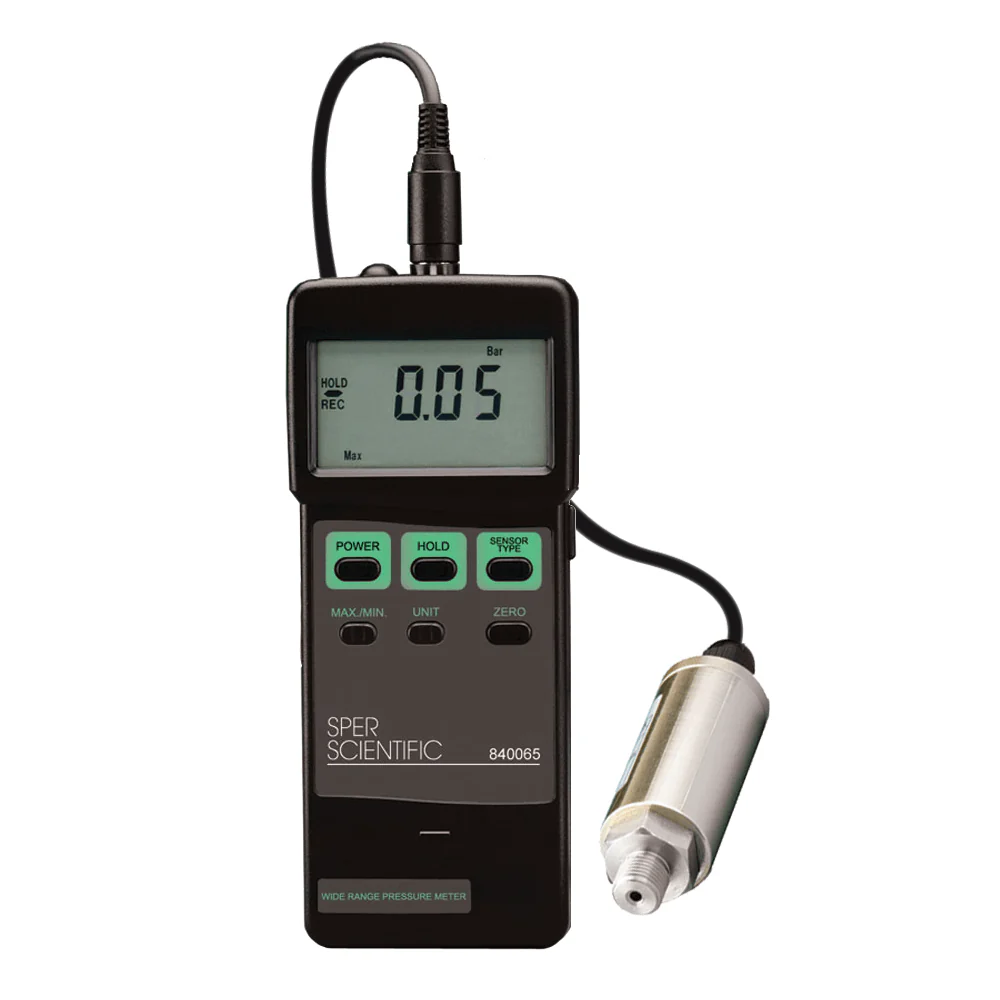

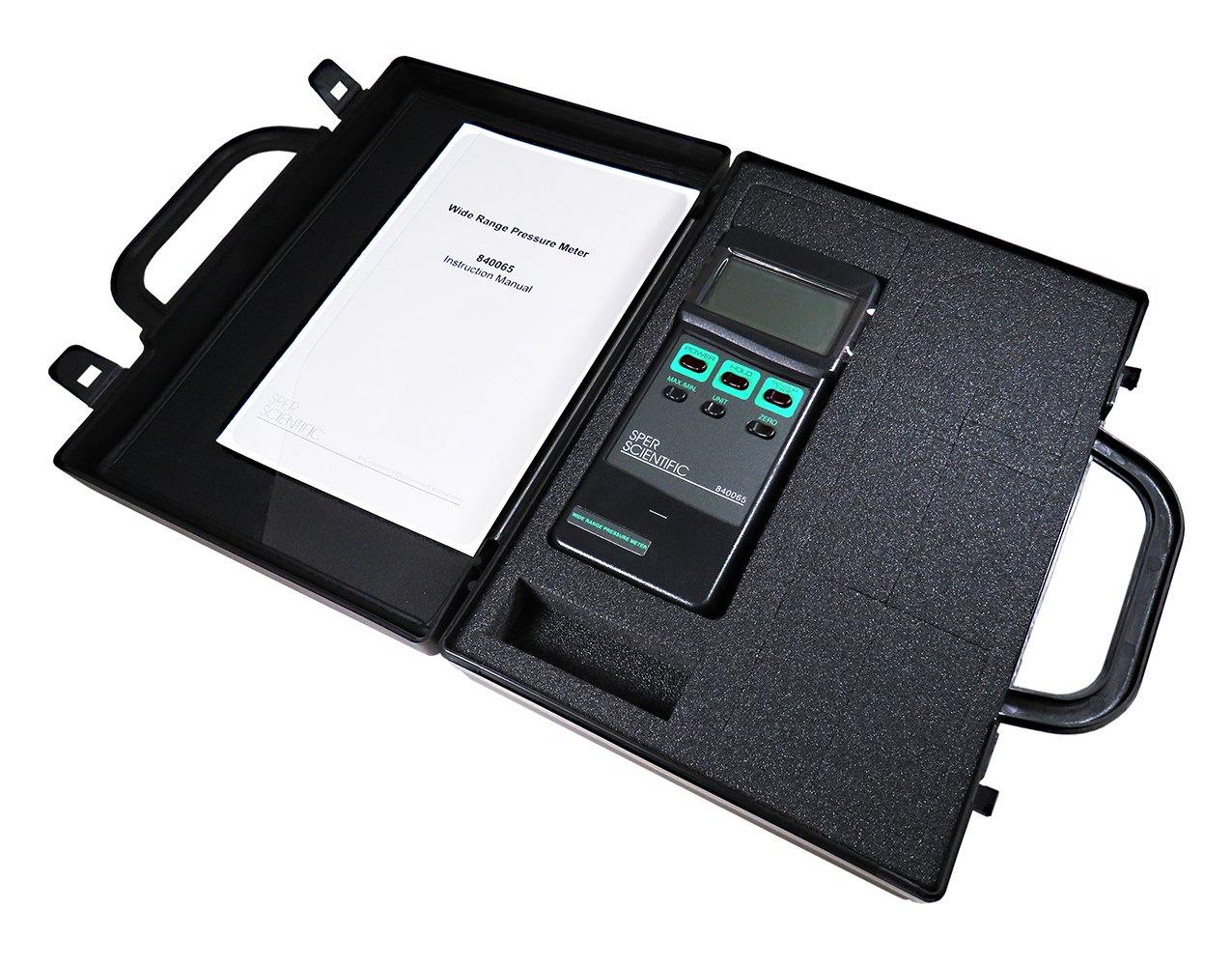

Compatible with both liquids and gases. Useful in measuring pneumatic pressure, automobile engine vacuum pressure, superheat measurements, hydraulic servo controls, refrigeration, air conditioning, and food processing. Features eight units of measure, min/max, hold, and auto power off. Comes in a hard carrying case with a 9V battery. (Shown with transducer, transducers sold separately).
Dimensions: 7" × 3" × 1½" (178 × 76 × 38 mm)
Weight: 13 oz (369 g)
*Certification Option
N.I.S.T. traceable Certificate of Compliance available at additional cost (Select option above).
Transducer certification requires approximately 2-3 weeks additional lead time for delivery.
*If you are purchasing a transducer certification, please ADD ONE CERTIFICATION FOR EACH TRANSDUCER ordered. (Only transducers can be certified, not the meter itself).
Downloads
Comparison Chart
Original: $264.00
-70%$264.00
$79.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Covers a wide pressure range from 0 to 725 psi, not usually found in a single manometer.
Compatible with both liquids and gases. Useful in measuring pneumatic pressure, automobile engine vacuum pressure, superheat measurements, hydraulic servo controls, refrigeration, air conditioning, and food processing. Features eight units of measure, min/max, hold, and auto power off. Comes in a hard carrying case with a 9V battery. (Shown with transducer, transducers sold separately).
Dimensions: 7" × 3" × 1½" (178 × 76 × 38 mm)
Weight: 13 oz (369 g)
*Certification Option
N.I.S.T. traceable Certificate of Compliance available at additional cost (Select option above).
Transducer certification requires approximately 2-3 weeks additional lead time for delivery.
*If you are purchasing a transducer certification, please ADD ONE CERTIFICATION FOR EACH TRANSDUCER ordered. (Only transducers can be certified, not the meter itself).
